TDA4800

Features: · Fully integrated, few external components· RC oscillator with wide sync range of 1 : 3 (e.g. 50 to 150 Hz)· Synchronization by positive or negative going sync pulse· Blanking pulse duration is determined externally· Dual frequency criterion for automatic amplitude switch-over (e.g. 50 ...

product image

TDA4800 Picture
See larger image
SeekIC No. : 004516377 Detail

TDA4800: Features: · Fully integrated, few external components· RC oscillator with wide sync range of 1 : 3 (e.g. 50 to 150 Hz)· Synchronization by positive or negative going sync pulse· Blanking pulse durat...

TDA4800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Fully integrated, few external components
· RC oscillator with wide sync range of 1 : 3 (e.g. 50 to 150 Hz)
· Synchronization by positive or negative going sync pulse
· Blanking pulse duration is determined externally
· Dual frequency criterion for automatic amplitude
    switch-over (e.g. 50 to 60 Hz)
· Guard circuit for screen protection
· Sawtooth generator with buffer stage supplied by
    external voltage
· Preamplifier
· Power output stage with thermal and SOAR protection
· Flyback generator
· Internal voltage stabilizer.


Pinout

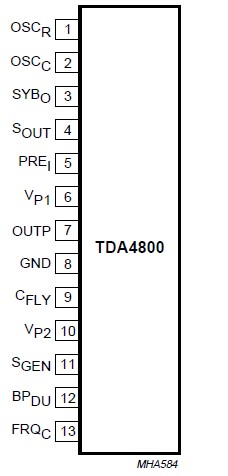

Connection Diagram


Description

The TDA4800 is an integrated circuit for vertical deflection primarily in monitors (and TV receivers). The complete circuit consists of 11 main functional blocks as shown in Fig.1.
