Input Voltage MAX : 20 V Output Voltage : 5.1 V, 12 V
Dropout Voltage (Max) : 1.4 V Output Current : 1 A
Load Regulation : 250 mV Number of Outputs : 2
Output Type : Fixed Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole Package / Case : HEPTAWATT

Description

Output Type : Fixed
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Number of Outputs : 2
Dropout Voltage (Max) : 1.4 V
Output Current : 1 A
Input Voltage MAX : 20 V
Package / Case : HEPTAWATT
Output Voltage : 5.1 V, 12 V
Load Regulation : 250 mV


Features:

· OUTPUT CURRENTS UP TO 1A
·  FIXED PRECISION OUTPUT 1 VOLTAGE 5.1V +/- 2%
· FIXED PRECISION OUTPUT 2 VOLTAGE 12V +/- 2%
· OUTPUT 1 WITH DISABLE BY TTL INPUT
· OUTPUT 2 WITH DISABLE BY TTL INPUT
· SHORT CIRCUIT PROTECTION AT BOTH OUTPUTS
· THERMAL PROTECTION LOW DROP OUTPUTVOLTAGE


Pinout

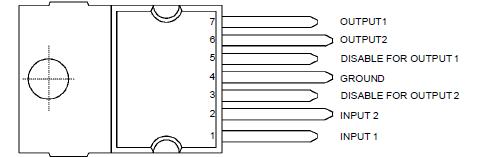

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VIN
 DC Input Voltage Pin 1
20
V
VDIS Disable Input Voltage Pins 3-5
20
V
IO1, 2 Output Currents
Internally Limited
V
Pt Power Dissipation
Internally Limited
A
Tstg Storage Temperature
-65, +150
Tj Junction Temperature
0, +150



Description

The TDA8132 is a monolithic dual positive voltage regulator designedto provide fixed precision output voltages of 5.1V and 12V at currents up to 1A.

Each output can be disabled separately by a TTL input.

Short circuit and thermal protections of the TDA8132 are included.
