TDA 4360X

Features: • High flexibility with an external preamplifier stage• Sym. or asym. mixer input• 2-pin oscillator for the 1. LO• 1. LO with LC tank circuit• 1. LO at 100 MHz range• Low narrow band noise• Divider for 1. LO by 10 for the 100 kHz . 2 MHz range an...

product image

TDA 4360X Picture
See larger image
SeekIC No. : 004516009 Detail

TDA 4360X: Features: • High flexibility with an external preamplifier stage• Sym. or asym. mixer input• 2-pin oscillator for the 1. LO• 1. LO with LC tank circuit• 1. LO at 100 MH...

TDA 4360X Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA 4360X
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High flexibility with an external preamplifier stage
• Sym. or asym. mixer input
• 2-pin oscillator for the 1. LO
• 1. LO with LC tank circuit
• 1. LO at 100 MHz range
• Low narrow band noise
• Divider for 1. LO by 10 for the 100 kHz . 2 MHz range and by 8 for the 2 MHz . 6 MHz range
• Integrated AGC generation
• Strictly symmetrical RF path
• Decoupled counter output
• 2. LO with quartz or external source
• Output for gain controlled 2. IF
• Switchable AGC time constant


Pinout

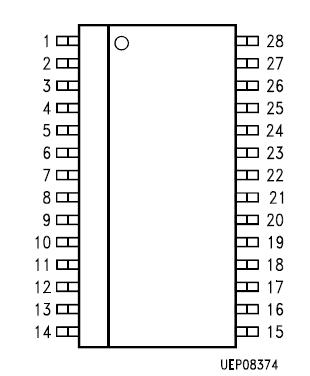

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
ESD VESD 4 + 4 kV HBM
Supply voltage VS 0 13.2 V by storage
Mixer 1 output V27, V28 0 13.2 V
Mixer 2 output V20 0 13.2 V
Mixer 2 input V21, 22 0 13.2V V 1.5 k, 100 pF
AGC threshold V3 0 5 V
Mixer 1 input V1, 2 0 5 V
fOSC/n V5 0 13 V
fOSC V10 0 13 V
Divide by n V11 0 5 V
VRef V6 0 5 V
IRef I6, 0 0 3 mA
2. LO V23, 24 0 5 V
AGC amplifier input V17 .19 0 5 V
IF counter V15 0 13.2 V
AM stereo output V16 0 13.2 V
AF output V14 0 13.2 V
IF AGC V12 0 13.2 V
Note: Maximum ratings are absolute ratings; exceeding only one of these values may cause irreversible damage to the integrated circuit.
