Product Details

Description



Features:

1. Stereo sound processing
• Four stereo AF inputs
• Input/Output interface for external equalizer
• Max. gain switchable between 0 dB and 6 dB
• Bass and treble control
• Four independent attenuators for volume balance and fader control
2. Control part
• I2C Bus interface compatible for standard and fast mode
• Control of sound processing


Pinout

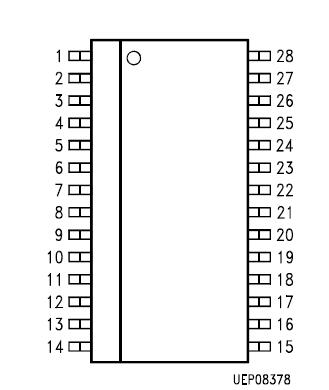

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
Max. DC voltage I15 0 5 mA
Max. DC voltage I16 0 5 mA
Max. DC voltage I17 0 2 mA
Max. DC voltage I19 0 2 mA
Max. DC voltage I24 0 2 mA
Junction temperature Tj
150 °C
Storage temperature Ts
40
 125 °C
Thermal resistance RthSA
76 K/W
Note: Maximum ratings are absolute ratings; exceeding only one of these values may cause irreversible damage to the integrated circuit.
