TE28F160B3B120

Features: ` Flexible SmartVoltage Technology- 2.7V3.6V Program/Erase- 2.7V3.6V Read Operation- 12V VPP Fast Production Programming` 2.7V or 1.8V I/O Option- Reduces Overall System Power` Optimized Block Sizes- Eight 4-KW Blocks for Data, Top or Bottom Locations- Up to Thirty-One 32-KW Blocks for C...

product image

TE28F160B3B120 Picture
See larger image
SeekIC No. : 004517180 Detail

TE28F160B3B120: Features: ` Flexible SmartVoltage Technology- 2.7V3.6V Program/Erase- 2.7V3.6V Read Operation- 12V VPP Fast Production Programming` 2.7V or 1.8V I/O Option- Reduces Overall System Power` Optimized B...

TE28F160B3B120 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TE28F160B3B120
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Flexible SmartVoltage Technology
- 2.7V3.6V Program/Erase
- 2.7V3.6V Read Operation
- 12V VPP Fast Production Programming
` 2.7V or 1.8V I/O Option
- Reduces Overall System Power
` Optimized Block Sizes
- Eight 4-KW Blocks for Data, Top or Bottom Locations
- Up to Thirty-One 32-KW Blocks for Code
` High Performance
- 2.7V3.6V: 120 ns Max Access Time
` Block Locking
- VCC-Level Control through WP#
` Low Power Consumption
- 20 mA Maximum Read Current
` Absolute Hardware-Protection
- VPP = GND Option
- VCC Lockout Voltage
` Extended Temperature Operation
- 40 to +85
` Supports Code Plus Data Storage
- Optimized for FDI, Flash Data Integrator Software
- Fast Program Suspend Capability
- Fast Erase Suspend Capability
` Extended Cycling Capability
- 10,000 Block Erase Cycles
` Automated Word Program and Block Erase
- Command User Interface
- Status Registers
` SRAM-Compatible Write Interface
` Automatic Power Savings Feature
` Reset/Deep Power-Down
- 1 A ICCTypical
- Spurious Write Lockout
` Standard Surface Mount Packaging
- 48-Ball BGA* Package
- 48-Lead TSOP Package
` Footprint Upgradeable
- Upgradeable from 2-, 4- and 8-Mbit Boot Block
` ETOX™ V (0.4 ) Flash Technology


Pinout

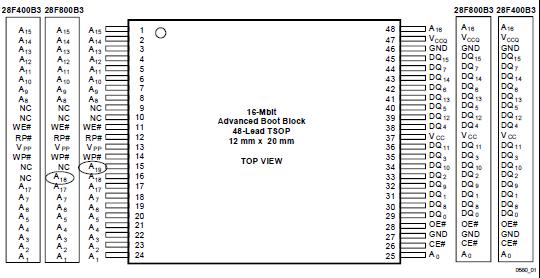

Connection Diagram


Specifications

Extended Operating Temperature
During Read ............................40 to +85
During Block Erase
and Program............................ 40to +85
Temperature Under Bias .........40 to +85
Storage Temperature.............65 to +125
Voltage on Any Pin
(except VCC, VCCQ and VPP)
with Respect to GND ............... 0.5V to +5.0V1
VPP Voltage (for Block
Erase and Program)
with Respect to GND ........0.5V to +13.5V1,2,4
VCC and VCCQ Supply Voltage
with Respect to GND ............... 0.2V to +5.0V1
Output Short Circuit Current................. 100 mA3


NOTES:
1. Minimum DC voltage is 0.5V on input/output pins. During transitions, this level may undershoot to 2.0V for periods < 20 ns. Maximum DC voltage on input/output pins is VCC + 0.5V which, during transitions, may overshoot to VCC + 2.0V for periods < 20 ns.
2. Maximum DC voltage on VPP may overshoot to +14.0V for periods < 20 ns.
3. Output shorted for no more than one second.No more than one output shorted at a time.
4. VPP Program voltage is normally 2.7V3.6V. Connection to supply of 11.4V12.6V can only be done for 1000 cycles on the main blocks and 2500 cycles on the parameter blocks during program/erase. VPP may be connected to 12V for a total of 80 hours maximum. See Section 3.4 for details.


Description

The TE28F160B3B120 new Smart 3 Advanced Boot Block, manufactured on Intel's latest 0.4 technology, represents a featurerich
solution at overall lower system cost. Smart 3 flash memory devices incorporate low voltage capability (2.7V read, program and erase) with high-speed, low-power operation. Several new features have been added, including the ability to drive the I/O at 1.8V, which significantly reduces system active power and interfaces to 1.8V controllers. A new blocking scheme enables code and data storage within a single device.

Add to this the TE28F160B3B120 Intel-developed Flash Data Integrator (FDI) software and you have the most cost-effective, monolithic code plus data storage solution on the market today. Smart 3 Advanced Boot Block Word-Wide products will be available in 48-lead TSOP and 48-ball BGA* packages. Additional information on this product family can be obtained by accessing Intel's WWW page: http://www.intel.com/design/flcomp.
