Part Number: TL082B

MFG: TI

Package Cooled: 3.9mm8

D/C: 08+

Description: The TL08x JFET-input operational amplifier family is designed to offer a wider selection than any previously developed ...

TL082B General Description

The TL08x JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient. Offset adjustment and external compensation options are available within the TL08x family.

The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from 40°C to 85°C. The Q-suffix devices are characterized for operation from 40°C to 125°C. The M-suffix devices are characterized for operation over the full military temperature range of 55°C to 125°C.

TL082B Maximum Ratings

		TL08_C TL08_AC TL08_BC	TL08_I	TL084Q	TL08_M	UNIT
Supply voltage, V_CC+ (see Note 1)		18	18	18	18	V
Supply voltage V_CC (see Note 1)		18	18	18	18	V
Differential input voltage, V_ID (see Note 2)		± 30	± 30	± 30	± 30	V
Input voltage, V_I (see Notes 1 and 3)		±15	±15	±15	±15	V
Duration of output short circuit (see Note 4)		unlimited	unlimited	unlimited	unlimited
Continuous total power dissipation		See Dissipation Rating Table
Operating free-air temperature range, T_A		0 to 70	40 to 85	40 to 125	55 to 125	°C
Storage temperature range, T_stg		65 to 150	65 to 150	65 to 150	65 to 150	°C
Case temperature for 60 seconds, T_C	FK package				260	°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds	J or JG package				300	°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds	D, N, P, or PW package	260	260	260		°C

Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, except differential voltages, are with respect to the midpoint between VCC+ and VCC.
2. Differential voltages are at IN+ with respect to IN .
3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 V, whichever is less.
4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the
dissipation rating is not exceeded.

TL082B Features

Low Power Consumption
Wide Common-Mode and Differential Voltage Ranges
Low Input Bias and Offset Currents
Output Short-Circuit Protection
Low Total Harmonic Distortion . . . 0.003% Typ
High Input Impedance . . . JFET-Input Stage
Latch-Up-Free Operation
High Slew Rate . . . 13 V/ms Typ
Common-Mode Input Voltage Range Includes V_CC+

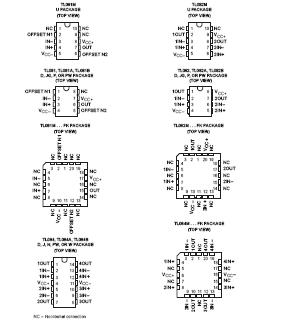

TL082B Connection Diagram

TL082B datasheet

TL082B
PDF/DataSheet Download

Datasheet: TL082B
File Size: 104138 KB
Manufacturer: STMicro
Click here to Download
