Purchase TLE4203, In-stock TLE4203 From SeekIC.
MFG:infineon D/C:0036/
Part Number: TLE4203
MFG: infineon
D/C: 0036/
Description: The integrated circuit TLE 4203 is a versatile double power driver of up to 4 A output current which i...
- Table of contents:
TLE4203
-
Suppliers
DataSheet
General Description
TLE4203 General Description
The integrated circuit TLE 4203 is a versatile double power driver of up to 4 A output current which is particularly suitable as a driver for DC motors in reversible operation.
The push-pull power output stages operate in the switching mode and can be combined to a full-bridge configuration.
The drive of the input stage is implemented using digital logic.
The device contains a temperature protection logic, output stages protected against short-circuit and integrated free-wheeling diodes.
Typical applications are for follow-up control, servo drives, servo motors, drive mechanisms, etc.
TLE4203 Maximum Ratings
|
Parameter |
Symbol |
Limit Values |
Unit | |
|
min. |
max. | |||
| Voltages | ||||
| Supply voltage Logic input voltages |
VS VI 1, 2 |
0.3 |
45 45 |
V V |
| Currents | ||||
| Supply current TC 85 Output current TC 85 Ground current TC 85 |
IS IQ 1, 2 IGND |
12 6 12 |
12 |
A A A |
| Temperatures | ||||
| Junction temperature Storage temperature range |
Tj Tstg |
50 |
150 150 |
|
| Thermal resistances system - case system - ambient |
Rth SC Rth SA |
|
3 65 |
K/W K/W |
| Operating Range | ||||
| Supply voltage Logic input voltage |
VS VI 1, 2 |
5 -10 |
20 40 |
V V |
| Case temperature Tj 150 |
TC |
40 |
125 |
|
TLE4203 Features
• Integrated free-wheeling diodes
• Outputs short-circuit proof to VS and ground
• Thermal overload protection
• Blocking of the output stages upon undervoltage
• Final push-pull stage free of cross-over
• Outputs short-circuit proof to VS and ground
• Thermal overload protection
• Blocking of the output stages upon undervoltage
• Final push-pull stage free of cross-over

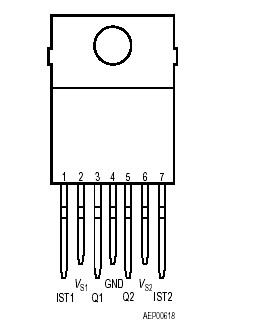

TLE4203 Connection Diagram
