TLE4241GM

LED Lighting Drivers LED DRIVERS

product image

TLE4241GM Picture
See larger image
SeekIC No. : 0010378 Detail

TLE4241GM: LED Lighting Drivers LED DRIVERS

TLE4241GM Data Sheet

floor Price/Ceiling Price

US $ .34~.43 / Piece | Get Latest Price
Part Number:
TLE4241GM
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~1520
  • 1520~2000
  • 2000~2500
  • 2500~5000
  • Unit Price
  • $.43
  • $.35
  • $.35
  • $.34
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Input Voltage : 4 V to 45 V Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : DSO-8

Description

Operating Frequency :
Maximum Supply Current :
Output Current :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Package / Case : DSO-8
Input Voltage : 4 V to 45 V


Features:

• Adjustable constant output current
• Wide input voltage range
• Low drop voltage
• Open load detection
• Overtemperature protection
• Short circuit proof
• Reverse polarity proof
• Wide temperature range: -40 °C < Tj < 150 °C
• Very small SMD-Package

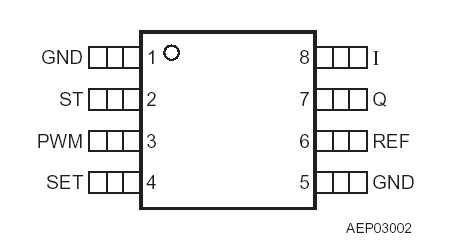

Pinout

Connection Diagram


Specifications

Parameter Symbol   Unit Remarks
Min. Max.
Input
Voltage VI -42 45 V
Current II mA internally limited
Output
Voltage VQ -1 40 V
Current IQ - - mA internally limited
Status Output
Voltage VST -0.3 40 V
Current IST -5 5 mA internally limited
Reference Input
Voltage VREF -0.3 7 V
Current IREF -2 2 mA
Pulse Width Modulation Input
Voltage VPWM -40 40 V
Current - -1 1 mA
High/Low Current Input
Voltage VSET -40 40 V
Current ISET -1 1 mA
Temperatures
Junction temperature Tj -40 150 °C
Storage temperature Tstg -50 150 °C
Thermal Resistances
Junction ambient Rthja - 105 K/W 1)

Note: Maximum ratings are absolute ratings; exceeding any one of these values may cause irreversible damage to the integrated circuit.
1) Worst case regarding peak temperature; mounted on PCB 80 * 80 * 1.5 mm3, 35 µm Cu, 300 mm2 heat sink area.


Parameters:

Technical/Catalog InformationTLE4241GM
VendorInfineon Technologies
CategoryIntegrated Circuits (ICs)
Package / CaseDSO-8
PackagingTube
Current - Output / Channel70mA
Number of Outputs1
TypeLinear (Non-Switching)
Voltage - Supply4 V ~ 45 V
Voltage - Output40V
Topology-
Frequency-
Operating Temperature-40°C ~ 150°C
Efficiency-
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names TLE4241GM
TLE4241GM
