TLE4264G

Number of Outputs : 1
Mounting Style : SMD/SMT
Output Voltage : 5 V
Output Type : Fixed
Maximum Operating Temperature : + 150 C
Package / Case : SOT-223
Input Voltage MAX : 45 V
Load Regulation : 40 mV
Dropout Voltage (Max) : 0.5 V at 100 mA
Output Current : 120 mA


Features:

Features
 Output voltage tolerance £ ± 2 %
 Low-drop voltage
 Very low current consumption
 Overtemperature protection
 Short-circuit proof
 Suitable for use in automotive electronics
 Reverse polarity

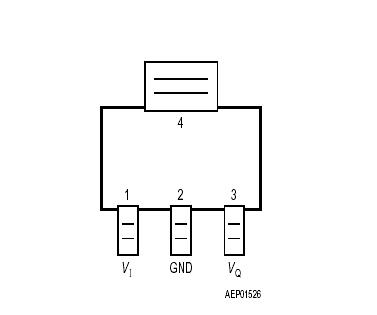

Pinout




Description

Functional Description
   TLE4264G is a 5-V low-drop fixed-voltage regulator in an SOT-223 package. The ICregulates an input voltage VI in the range 5.5 V < VI < 45 V to VQrated = 5.0 V. Themaximum output current is more than 120 mA. This IC is shortcircuit-proof and featurestemperature protection that disables the circuit at overtemperature.

Parameters:

Technical/Catalog Information	TLE4264G
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	SOT-223, SC-73, TO-261 (3 Leads + Tab)
Packaging	Tape & Reel (TR)
Regulator Topology	Positive Fixed
Current - Output	120mA
Voltage - Output	5V
Operating Temperature	-40°C ~ 150°C
Voltage - Input	6 ~ 21 V
Number of Regulators	1
Current - Limit (Min)	120mA
Current Short Circuit (Isc)	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLE4264G TLE4264G
