General Description
TLE4290 General Description
Functional Description
The TLE4290 is a monolithic integrated low-drop voltage regulator which can supply loads up to 450mA with power good feature. An input voltage up to 42V is regulated to V =5.0V. The device is designed to Q,nom supply -controllers in the severe environment of automotive applications. Therefore it is protected against overload, short circuit and over temperature conditions. Of course the TLE4290 can been used also in all other applications, where a stabilized 5V voltage is required.
TLE4290 Maximum Ratings
| Parameter | Symbol |
Limit Values |
Unit | Test Condition | |
| min. | max. | ||||
|
Input I | |||||
| Voltage | VI | 42 | 45 | V | |
| Current | II | Internally limited | |||
| Output Q | |||||
| Voltage | VQ | 1.0 | 16 | V | |
| Current | IQ | Internally limited | |||
| Power Good Output PG | |||||
| Voltage | VPG | 0.3 | 25 | V | |
| Current | IPG | 5 | 5 | mA | |
| Delay D | |||||
| Voltage | VD | 0.3 | 7 | V | |
| Current | ID | 2 | 2 | mA | |
| Temperature | |||||
| Junction temperature | Tj | 40 | 150 | °C | |
| Storage temperature | Tstg | 50 | 150 | °C | |
TLE4290 Features
Features
Output voltage 5V ±2%
Very low current consumption
450 mA current capability
Power Good Feature
Very low-drop voltage
Short-circuit-proof
Reverse polarity proof
Suitable for use in automotive electronics
Output voltage 5V ±2%
Very low current consumption
450 mA current capability
Power Good Feature
Very low-drop voltage
Short-circuit-proof
Reverse polarity proof
Suitable for use in automotive electronics

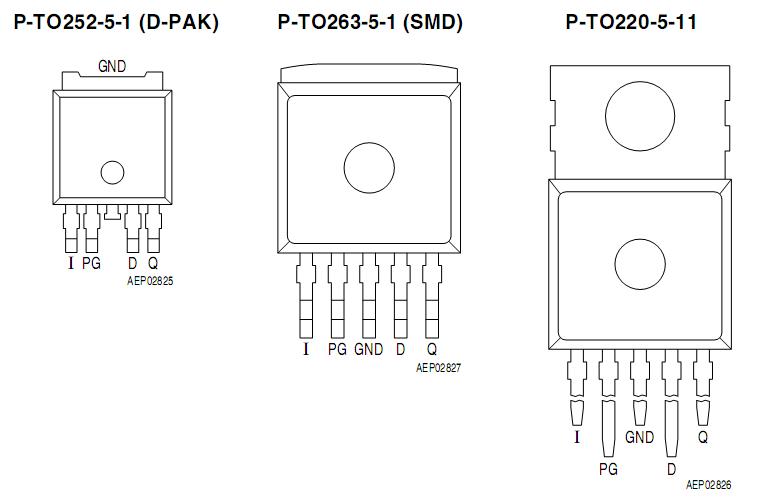

TLE4290 Connection Diagram
