Part Number: TLE4295
Description: The TLE4295G is a monolithic integrated low-drop voltage regulator in the very smallSMD package...
- Table of contents:
TLE4295
-
Suppliers
DataSheet
General Description
TLE4295 General Description
The TLE4295G is a monolithic integrated low-drop voltage regulator in the very smallSMD package SCT-595. It is designed to supply e.g. microprocessor systems under thesevere conditions of automotive applications. Therefore the device is equipped withadditional protection functions against over load, short circuit and reverse polarity. Atovertemperature the regulator is automatically turned off by the integrated thermal protection circuit.
Input voltages up to 40V are regulated to V = 3.0V (V30 version) 3.3V (V33 Q,nom version) or 5.0 V (V50 version). The output is able to drive a load of more than 30 mA while it regulates the output voltage within a 4% accuracy. The power fail output (open collector) is switched to low in case of undervoltage overload or saturation of the output transistor.
TLE4295 Maximum Ratings
| Parameter | Symbol |
Limit Values |
Unit | Remarks | |
| min. | max. | ||||
|
Input | |||||
| Voltage | VI | 42 | 45 | V | |
| Current | II | mA | Internally limited | ||
| Output | |||||
| Voltage | VQ | 6 | 30 | V | |
| Current | IQ | mA | Internally limited | ||
| Power Fail | |||||
| Voltage | VPF | 0.3 | 45 | V | |
| Current | IPF | 500 | * | A | * internally limited |
| Temperatures | |||||
| Junction temperature | Tj | 40 | 150 | °C | |
| Storage temperature | Tstg | 50 | 150 | °C | |
| Thermal Resistances | |||||
| Junction pin | Rthj-pin | 30 | K/W | measured to pin 5 | |
| Junction ambient1) | Rthja | 179 | K/W |
zero airflow zero heat sink area | |
TLE4295 Features
Features
Three versions: 3.0 V, 3.3 V, 5.0 V
Output voltage tolerance ±4%
Very low drop voltage
Output current: 30 mA
Power fail output
Low quiescent current consumption
Wide operation range: up to 45V
Wide temperature range: -40°C TJ150C
Output protected against short circuit
Overtemperature protection
Reverse polarity proof
Very small SMD-Package SCT-595
Three versions: 3.0 V, 3.3 V, 5.0 V
Output voltage tolerance ±4%
Very low drop voltage
Output current: 30 mA
Power fail output
Low quiescent current consumption
Wide operation range: up to 45V
Wide temperature range: -40°C TJ150C
Output protected against short circuit
Overtemperature protection
Reverse polarity proof
Very small SMD-Package SCT-595

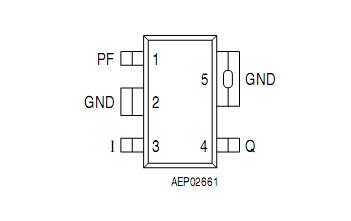

TLE4295 Connection Diagram
TLE4295GV30
PDF/DataSheet Download
- Datasheet: TLE4295GV30
- File Size: 432613 KB
- Manufacturer: INFINEON [Infineon Technologies AG]
- Click here to Download
