MFG:N/A Package Cooled:N/A D/C:N/A
MFG: N/A
Package Cooled: N/A
D/C: N/A
Description: The TLE 4299 is a monolithic voltage regulator with fixed 5-V output, supplying loads up to 150 mA. It...
The TLE 4299 is a monolithic voltage regulator with fixed 5-V output, supplying loads up to 150 mA. It is especially designed for applications that may not be powered down while the motor is off. It only needs a quiescent current of typical 65 A. In addition the TLE 4299 GM includes an inhibit function. When the inhibit signal is removed, the device is switched off and the quiescent current is less than 1 A. To achieve proper operation of the -controller, the device supplies a reset signal. The reset delay time is selected application-specific by an external delay capacitor. The reset threshold is adjustable. An early warning signal supervises the voltage at pin SI. The TLE 4299 is pin-compatible to the TLE 4269 and functional similar with the additional inhibit function. The TLE 4299 is designed to supply microcontroller systems even under automotive environment conditions. Therefore it is protected against overload, short circuit and over temperature.

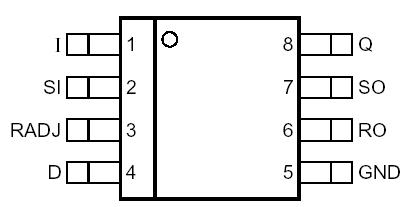

| Parameter | Symbol | Limit Values | Unit | Notes | |
| min. | max. | ||||
| Temperature | |||||
| Junction temperature | Tj | 150 | |||
| Storage temperature | TStg | -50 | 150 | ||
| Operating Range | |||||
| Input voltage | VI | 45 | V | ||
| Junction temperature | Tj | -40 | 150 | ||
| Thermal Data | |||||
| Junction-ambient | Rthja | 200 70 |
K/W K/W |
P-DSO-8-3 P-DSO-14-8 | |
| Junction-pin | Rthjp | 60 30 |
K/W K/W |
P-DSO-8-3 P-DSO-14-81) | |
• Output voltage 5 V ±2%
• 150 mA Output current
• Extreme low current consumption typical 65 A in ON state
• Inhibit function: Below 1 A current consumption in off mode
• Early warning
• Reset output low down to VQ = 1 V
• Adjustable reset threshold
• Overtemperature protection
• Reverse polarity proof
• Wide temperature range
TLE4299GM
PDF/DataSheet Download
