TRC101

Maximum Data Rate :
Maximum Operating Temperature :
Interface Type :
Packaging : Reel
Operating Supply Voltage : 2.5 V, 3.3 V, 5 V
Package / Case : TSSOP-16
Modulation Format : FSK
Output Power : 4 dBm to 8 dBm
Frequency Range : 300 MHz to 1000 MHz


Features:

• Modulation: FSK (Frequency Hopping Spread Spectrum capability)
• Frequency range: 300-1000 MHz
• High sensitivity: (-105 dBm)
• High data rate: Up to 256 kbps
• Low current consumption (RX current ~8.5mA)
• Wide operating supply voltage: 2.2 to 5.4V
• Low standby current (0.2uA)
• Integrated PLL, IF, Baseband Circuitry
• Automatic Frequency Adjust(TX/RX frequency alignment)
• Programmable Analog/Digital Baseband Filter
• Programmable Output RF Power
• Programmable Input LNA Gain
• Internal Valid Data Recognition
• Transmit/Receive FIFO
• Standard SPI Interface
• TTL/CMOS Compatible I/O pins
• Programmable CLK Output Freq
• Automatic Antenna tuning circuit
• Low cost, generic 10MHz Xtal reference
• Integrated, Programmable Low Battery Voltage Detector
• Programmable Wake-up Timer with programmable Duty Cycle
• Integrated Selectable Analog/Digital RSSI
• Integrated Crystal Oscillator
• External Processor Interrupt pin
• Programmable Crystal Load Capacitance
• Programmable Data Rate
• Integrated Clock & Data Recovery
• Programmable, Positive/Negative FSK Deviation
• External Wake-up Events
• Support for Multiple Channels
• [315/433 Bands] 380 Channels(25kHz)
• [868 Band] 761 Channels(25kHz)
• [915 Band] 1040 Channels(25kHz)
• Power-saving sleep mode
• Very few external components requirement
• Small size plastic package: 16-pin TSSOP
• Standard 13 inch reel, 2000 pieces.




Application

• Active RFID tags
• Automated Meter reading
• Home & Industrial Automation
• Security systems
• Two way Remote keyless entry
• Automobile Immobilizers
• Sports & Performance monitoring
• Wireless Toys
• Medical equipment
• Low power two way telemetry systems
• Wireless mesh sensors
• Wireless modules

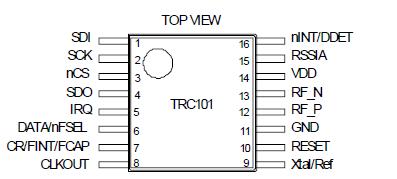

Pinout






Specifications

Symbol	Parameter	Rating	Unit
VDD	Positive supply voltage	-0.5 to 6	V
Vin	Voltage on any pin (except RF_P and RF_N)	-0.5 to Vdd + 0.5	V
Voc	Voltage on open collector outputs (RF1, RF2)1	-0.5 to Vdd + 1.5	V
Iin	Input current into any pin except VDD and VSS	-25 to 25	mA
ESD	Electrostatic discharge with human body model	1000	V
Tstg	Storage temperature	- 55 ~ +125	°C
Tlead	Lead temperature (soldering, max 10 s)	260	°C

Note 1: At maximum, VDD+1.5 V cannot be higher than 7 V.




Description

The TRC101 is a low power, frequency agile, zero-IF, multi-channel FSK transceiver for use in the 315, 433, 868, and 916 MHz bands. All RF and baseband functions are completely integrated requiring only a single 10MHz crystal as a reference source and an external low-cost processor. Functions of TRC101 include:
• PLL synthesizer
• Power Amp
• LNA
• I/Q Mixers
• I/Q Demodulators
• Baseband Filters
• Baseband Amplifiers
• RSSI
• Low Battery Detector
• Wake-up Timer/Duty Cycle Mode
• Valid Data Detection/Data Quality
The TRC101 is ideal for Frequency Hopping Spread Spectrum (FHSS) applications requiring frequency agility to meet FCC requirements. Use of a low-cost microcontroller is all that is needed to create a complete data link. The TRC101 incorporates different sleep modes to reduce overall current consumption and extend battery life. It is ideal for applications operating from typical lithium coin cells.

Parameters:

Technical/Catalog Information	TRC101
Vendor	RF MONOLITHICS INC (VA)
Category	RF and RFID
Frequency	300MHz ~ 1GHz
Data Rate - Maximum	256 kbps
Modulation or Protocol	FSK
Applications	General Purpose
Power - Output	8dBm
Sensitivity	-105dBm
Voltage - Supply	2.2 V ~ 5.4 V
Current - Receiving	17mA
Current - Transmitting	28mA
Package / Case	16-TSSOP
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Digi-Reel?
Memory Size	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TRC101 TRC101 583 1093 6 ND 58310936ND 583-1093-6
