U6209B

Features: ` 1.3 GHz divide-by-8 prescaler integrated(can be bypassed)` 15 bit counter accepts input frequencies up to 170 MHz` Programmable reference divider: divider by 512 or1024` P-controlled by I2C-Bus (MC44818 data format compatible)` Five port outputs (open collector )` Four addresses select...

product image

U6209B Picture
See larger image
SeekIC No. : 004534975 Detail

U6209B: Features: ` 1.3 GHz divide-by-8 prescaler integrated(can be bypassed)` 15 bit counter accepts input frequencies up to 170 MHz` Programmable reference divider: divider by 512 or1024` P-controlled by ...

U6209B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U6209B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 1.3 GHz divide-by-8 prescaler integrated(can be bypassed)
` 15 bit counter accepts input frequencies up to 170 MHz
` Programmable reference divider: divider by 512 or1024
` P-controlled by I2C-Bus (MC44818 data format compatible)
` Five port outputs (open collector )
` Four addresses selectable at Pin 10 for multi-tuner application
` 31.25 kHz ( 1.3 GHz ) / 3.90625 kHz ( 170 MHz ) tuning steps with 4MHz Xtal
` Electrostatic protection according to MILSTD 883
` SO16 small package

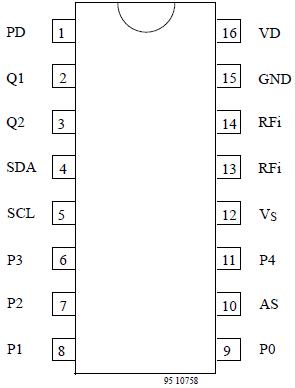

Pinout

Connection Diagram


Specifications

Parameters
Symbol
Min.
 Typ
Max.
Unit
Supply voltage Pin 12
Vs
-0.3

6
V
RF input voltage Pin13,14
Rfi
-0.3

Vs+0.3
V
Crystal input voltage Pin2
Q1
-0.3

Vs+0.3
V
Charge pump output voltage Pin1
PD
-0.3

Vs+0.3
V
Active filter output voltage Pin16
VD
-0.3

Vs+0.3
V
Bus input/output voltage Pin4
VSDA
-0.3

6
V
Pin5
VSCL
-0.3

6
V
SDA output current open collector Pin 4
ISDA
-1

5
mA
Address select voltage Pin 10
VAS
-0.3

Vs+0.3
V
Port output current open collector Pin 6-9,11
po-4
-1

15
mA
Total port output current open collector Pins 6-9,11
po-4
-1

50
mA
Port output voltage in off state
po-4
-0.3

15
V
In ON state Pins6-9,11
-0.3

6
V
Junction temerature
Tj
-40

125
Storage temerature
Tstg
-40

125



Description

The U6209B is a single chip PLL frequency synthesizer with unidirectional I2C-bus control. This IC contains a high frequency prescaler which can be switched off.Five open collector switching outputs are available. The U6209B has a programmable 512/1024 reference divider
