Product Details

Description

Features:

• Drives Power MOSFETs or Power Darlingtons Directly
• 50V Open Collector High-Side Drivers
• Latched Soft Start
• High-speed Current-Sense Amplifier with Ideal Diode
• Pulse-by-Pulse and Average Current Sensing
• Over-Voltage and Under-Voltage Protection
• Direction Latch for Safe Direction Reversal
• Tachometer
• Trimmed Reference Sources 30mA
• Programmable Cross-Conduction Protection
• Two-Quadrant and Four-Quadrant Operation

Pinout

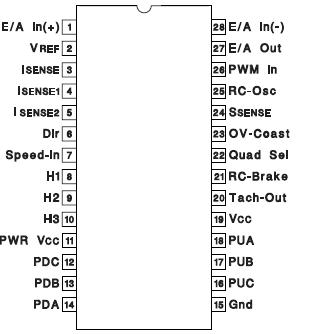

Connection Diagram

Specifications

VCC Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . .... +20V
Pwr V_CCSupply Voltage . . . . . . . . . . . . . . . . . . . . . . . . .... +20V
PWM In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0.3 to 6V
E/A IN(+), E/A IN() . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 12V
I_SENSE1, I_SENSE2. . . . . . . . . . . . . . . . . . . . . . . . . . ..... 1.3 to 6V
OVCoast, Dir, Speed-In, SSTART, Quad Sel . . . . .. . 0.3 to 8V
H1, H2, H3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 12V
PU Output Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 50V
PU Output Current . . . . . . . . . . . . . . . . ... . +200 mA continuous
PD Output Current . . . . . . . . . . . . . . . . . ... ±200 mA continuous
E/A Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±10 mA
I_SENSE Output Current . . . . . . . . . . . . . . . . . . . . . . . . .. 10 mA
Tach Out Output Current . . . . . . . . . . . . . . . . . .. . . . . . ±10 mA
V_REF Output Current . . . . . . . . . . . . . . . . . .. 50 mA continuous
Operating Temperature Range UC1625. . . . .. 55°C to 125°C
Operating Temperature Range UC2625. . . . . .40°C to 105°C
Operating Temperature Range UC3625. . . . . . . . . 0°C to 70°C

Note 1: Currents are positive into and negative out of the specified terminal.
Note 2: Consult Unitrode Integrated Circuits databook for information regarding thermal specifications and limitations of packages.

Description

The UC3625 family of motor controller ICs integrate most of the functions required for high-performance brushless DC motor control into one package. When coupled with external power MOSFETs or Darlingtons, these ICs perform fixed-frequency PWM motor control in either voltage or current mode while implementing closed loop speed control and braking with smart noise rejection, safe direction reversal, and crossconduction protection.

Although specified for operation from power supplies between 10V and 18V, the UC1625 can control higher voltage power devices with external level-shifting components. The UC1625 contains fast, high-current push-pull drivers for low-side power devices and 50V open-collector outputs for high-side power devices or level shifting circuitry.

The UC1625 is characterized for operation over the military temperature range of 55°C to +125°C, while the UC2625 is characterized from 40°C to +105°C and the UC3625 is characterized from 0°C to 70°C. (NOTE: ESD Protection to 2kV)
