Part Number: UPD17006AGF-011
Description: The µPD17006AGF-011 is a 4-bit CMOS microcontroller for digital tuning and can receive European ...
- Table of contents:
UPD17006AGF-011
-
Suppliers
DataSheet
General Description
UPD17006AGF-011 General Description
The µPD17006AGF-011 is a 4-bit CMOS microcontroller for digital tuning and can receive European FM, MW, and LW bands. It contains a prescaler (150 MHz MAX.), PLL frequency synthesizer, and IF counter. This microcontroller supports European Radio Data System (RDS) and implements various RDS functions, so that it can configure with a single chip a high-performance FM, MW, or LW tuner such as that for luxury automobile stereo systems.
In addition, an RDS decoder is realized as a software library, so that the system using the µPD170006AGF-011 can eliminate one IC chip as compared with existing systems.
UPD17006AGF-011 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Supply Voltage | VDD | 0.3 to +6.0 | V | |
| Input Voltage | VI | 0.3 to VDD+ 0.3 | V | |
| Output Voltage | VO | Except P0A2, P0A3, P1B1-P1B3 | 0.3 to VDD+ 0.3 | V |
| High-Level Output Current | IOH | 1 pin | 10.0 | mA |
| Total of all pins | 20.0 | mA | ||
| Low-Level Output Current | IOL | 1 pin | 10.0 | mA |
| Total of all pins | 20.0 | mA | ||
| Output Voltage | VBDS1 | P1B1-P1B3 | 0.3 to +13.0 | V |
| VBDS2 | P0A2, P0A3 | 0.3 to VDD+ 0.3 | V | |
| Total Dissipation | Pt | 450 | mW | |
| Operating Temperature | Topt | 40 to +85 | °C | |
| Storage Temperature | Tstg | 55 to +125 | °C |
UPD17006AGF-011 Features
Preset memory
Five stations each for four bands, FM1, FM2, FM3,
and AM (shared with MW and LW), totaling 20 stations
Last channel memory
One station for each band
Tuning function
• Manual seek/auto seek
• Auto store memory
• Auto retune µPD16430A as LCD controller/driver
• 5 V±10% single power source
RDS function
• Broadcasting station name display (PS)
• AF operation
• AF list of up to 25 stations can be loaded.
• Supports METHOD A/B
• Traffic information standby function (TP, TA)
• Alarm function (PTY = 31)
• PTY seek function (broadcasting program idetification information)
• CT function (time adjustment function)
• RDS memory AF data for eight stations can be stored for 22 types of PI code
• EON function
• RDS memory AF data update function
• EON station traffic information selection function
• RDS decode function
Five stations each for four bands, FM1, FM2, FM3,
and AM (shared with MW and LW), totaling 20 stations
Last channel memory
One station for each band
Tuning function
• Manual seek/auto seek
• Auto store memory
• Auto retune µPD16430A as LCD controller/driver
• 5 V±10% single power source
RDS function
• Broadcasting station name display (PS)
• AF operation
• AF list of up to 25 stations can be loaded.
• Supports METHOD A/B
• Traffic information standby function (TP, TA)
• Alarm function (PTY = 31)
• PTY seek function (broadcasting program idetification information)
• CT function (time adjustment function)
• RDS memory AF data for eight stations can be stored for 22 types of PI code
• EON function
• RDS memory AF data update function
• EON station traffic information selection function
• RDS decode function

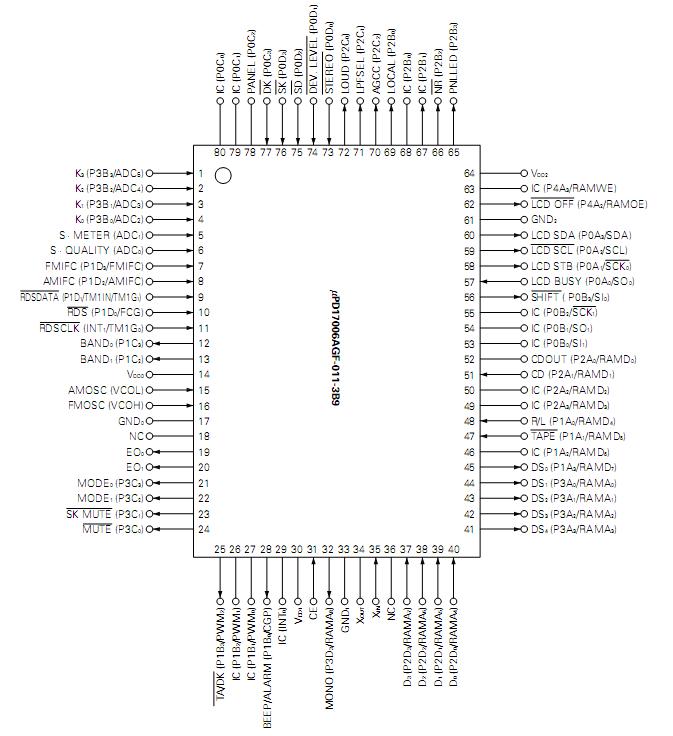

UPD17006AGF-011 Connection Diagram
UPD17006AGF-011
PDF/DataSheet Download
- Datasheet: UPD17006AGF-011
- File Size: 693609 KB
- Manufacturer: NEC [NEC]
- Click here to Download
