Part Number: UPD17P136AGT



MFG: NEC

Package Cooled: SOP-28

D/C: 1994

Description: The µPD17134A subseries is a 4-bit single-chip microcontroller employing the 17K architecture an...


Urgent Purchase

UPD17P136AGT General Description


The µPD17134A subseries is a 4-bit single-chip microcontroller employing the 17K architecture and containing an 8-bit A/D converter (4 channels), a timer (3 channels), an AC zero cross detector, a power-on reset circuit, and a serial interface. The µPD17P136A and 17P137A are the one-time PROM version of  the µPD17136A and 17137A, respectively, and are suitable for program evaluation at system development and for small-scale production.

The following are features of the µPD17134A subseries.

UPD17P136AGT Features

• 17K architecture:  general-purpose register mode, instruction length:  fixed to 16 bits
• Instruction execution time:2 µs (fX = 8 MHz, ceramic oscillation)8 µs (fCC = 2 MHz, RC oscillation)
• Program memory:µPD17134A:  2K bytes (1024 × 16 bits)µPD17135A:  2K bytes (1024 × 16 bits)
   µPD17136A:  4K bytes (2048 × 16 bits)
   µPD17137A:  4K bytes (2048 × 16 bits)
   µPD17P136A:  4K bytes (2048 × 16 bits, one-time PROM)
   µPD17P137A:  4K bytes (2048 ×16 bits, one-time PROM)
• Data memory (RAM):  112 × 4 bits
• A/D converter:  4 channels (8-bit resolution, successive approximation type)
• Timer:  3 channels (8-bit timer/counter × 2 channels, basic interval timerNote)
• Serial interface:  1 channel (clocked 3-wire mode)
• Supply voltage:VDD = 4.5 to 5.5 V (X = 400 kHz to 8 MHz)
   VDD = 2.7 to 5.5 V (fX = 400 kHz to 4 MHz)
   VDD = 2.7 to 5.5 V (fCC = 400 kHz to 2 MHz) for
   µPD17134A and 17136A

UPD17P136AGT Typical Application

• Electronic thermos bottle
• Rice cooker
• Audio equipment
• Battery charger
• Printer
• Plain Paper Copier

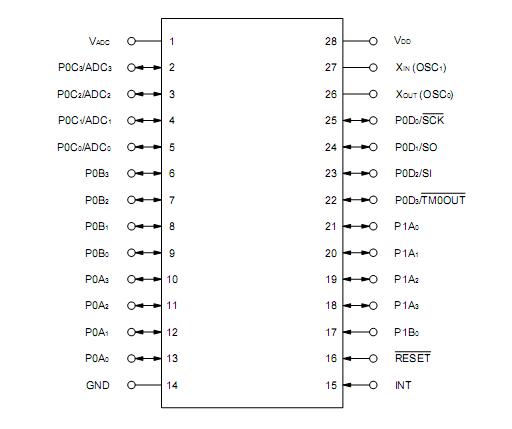

UPD17P136AGT Connection Diagram

UPD17P136AGT Connection Diagram
