General Description
V62C2802048L(L) General Description
The V62C2802048L is a low power CMOS Static RAM rganized as 262,144 words by 8 bits. Easy memory expansion provided by an active LOW CE1, an active IGH CE2, an active LOW OE, and Tri-state I/O's. This vice has an automatic power-down mode feature when selected.
Writing to the device is accomplished by taking Chip nable 1 (CE1) with Write Enable (WE) LOW, and Chip nable 2 (CE2) HIGH. Reading from the device is performed y taking Chip Enable 1 (CE1) with Output nable (OE) LOW while Write Enable (WE) and Chip nable 2 (CE2) is HIGH. The I/O pins are placed in a igh-impedance state when the device is deselected: the utputs are disabled during a write cycle.
TheV62C2802048LL comes with a 1V data retention feature nd Lower Standby Power. The V62C2802048L is valable in a 32-pin 8 x 20 mm TSOP1 / STSOP 8x13.4 mm nd CSP type 48-fpBGA packages.
V62C2802048L(L) Maximum Ratings
| Parameter |
Symbol |
Minimum |
Maximum |
Unit |
| Voltage on Any Pin Relative to Gnd |
Vt |
-0.5 |
3.6 |
V |
| Power Dissipation |
PT |
- |
1.0 |
W |
| Storage Temperature (Plastic) |
Tstg |
-55 |
+150 |
0C |
| Temperature Under Bias |
Tbias |
-40 |
+85 |
0C |
V62C2802048L(L) Features
• Low-power consumption
Active: 35mA at 55ns
Stand-by: 10 mA (CMOS input/output)
2 mA CMOS input/output, L version
• Single +2.2 to 2.7V Power Supply_Typical
• Extented Voltage from 2.2 to 3.6V.
• Equal access and cycle time
• 55/70/85/100 ns access time
• Easy memory expansion with CE1, CE2 nd OE inputs
• 1.0V data retention mode
• TTL compatible, Tri-state input/output
• Automatic power-down when deselected
• Package available: 32L TSOP(I)/ STSOP(I)
• 48 Ball CSP_BGA
Active: 35mA at 55ns
Stand-by: 10 mA (CMOS input/output)
2 mA CMOS input/output, L version
• Single +2.2 to 2.7V Power Supply_Typical
• Extented Voltage from 2.2 to 3.6V.
• Equal access and cycle time
• 55/70/85/100 ns access time
• Easy memory expansion with CE1, CE2 nd OE inputs
• 1.0V data retention mode
• TTL compatible, Tri-state input/output
• Automatic power-down when deselected
• Package available: 32L TSOP(I)/ STSOP(I)
• 48 Ball CSP_BGA

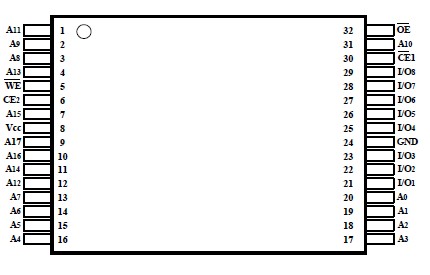

V62C2802048L(L) Connection Diagram
