Part Number: V62C318256
Description: The V62C318256 is a 262,144-bit static random access memory organized as 32,768 words by 8 bits. It is...
- Table of contents:
V62C318256
-
Suppliers
DataSheet
General Description
V62C318256 General Description
The V62C318256 is a 262,144-bit static random access memory organized as 32,768 words by 8 bits. It is built with MOSEL VITELIC's high performance CMOS process. Inputs and threestate outputs are TTL compatible and allow for direct interfacing with common system bus structures.
V62C318256 Maximum Ratings
| Symbol | Parameter |
Commercial |
Industrial |
Units |
| VCC |
Supply Voltage |
-0.5 to V CC +0.5 |
-0.5 to V CC +0.5 |
V |
| VN | Input Voltage |
-0.5 to V CC +0.5 |
-0.5 to V CC+0.5 |
V |
| VDQ | Input/Output Voltage Applied |
V CC + 0.3 |
VCC + 0.3 |
V |
| TBIAS | Temperature Under Bias |
-10 to +125 |
-65 to +135 |
|
| TSTG | Storage Temperature |
-55 to +125 |
-65 to +150 |
V62C318256 Features
High-speed: 35, 70 ns
Ultra low DC operating current of 2mA (max.)
Low Power Dissipation:
TTL Standby: 0.5 mA (Max.)
CMOS Standby: 10A (Max.)
Fully static operation
All inputs and outputs directly compatible
Three state outputs
Ultra low data retention current (VCC= 2V)
Extended operating voltage: 2.7V3.6V
Packages
28-pin TSOP (Standard)
28-pin 300 mil SOP (450 mil pin-to-pin)
Ultra low DC operating current of 2mA (max.)
Low Power Dissipation:
TTL Standby: 0.5 mA (Max.)
CMOS Standby: 10A (Max.)
Fully static operation
All inputs and outputs directly compatible
Three state outputs
Ultra low data retention current (VCC= 2V)
Extended operating voltage: 2.7V3.6V
Packages
28-pin TSOP (Standard)
28-pin 300 mil SOP (450 mil pin-to-pin)

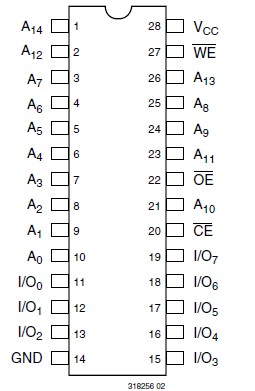

V62C318256 Connection Diagram
V62C318256
