Part Number: V62C5181024
Description: The V62C5181024 is a 1,048,576-bit static random-access memory organized as 131,072 words by 8 bits. It is built with M...
- Table of contents:
V62C5181024
-
Suppliers
DataSheet
General Description
V62C5181024 General Description
The V62C5181024 is a 1,048,576-bit static random-access memory organized as 131,072 words by 8 bits. It is built with MOSEL VITELIC's high performance CMOS process. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus tructures.
V62C5181024 Maximum Ratings
| Symbol | Parameter | Commercial | Industrial | Units |
| VCC | Supply Voltage | -0.5 to +7 | -0.5 to +7 | V |
| VN | Input Voltage | -0.5 to +7 | -0.5 to +7 | V |
| VDQ | Input/Output Voltage Applied | CVC + 0.5 | VCC + 0.5 | V |
| TBIAS | Temperature Under Bias | -10 to +125 | -65 to +135 | |
| TsTG | Storage Temperature | -55 to +125 | -65 to +150 |
V62C5181024 Features
High-speed: 35, 70 ns
Ultra low DC operating current of 5mA (max.)
TTL Standby: 5 mA (Max.)
CMOS Standby: 60A (Max.)
Fully static operation
All inputs and outputs directly compatible
Three state outputs
Ultra low data retention current (VCC= 2V)
Single 5V±10% Power Supply
Packages
-32-pin TSOP (Standard
-32-pin 600 mil PDI
-32-pin 440 mil SOP (525 mil pin-to-pin)

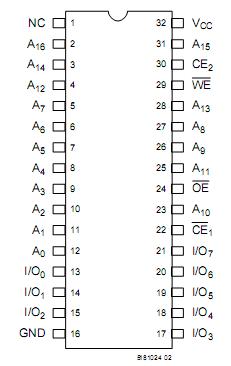

V62C5181024 Connection Diagram
V62C5181024
