VB125ASP

Switching Converters, Regulators & Controllers High Voltage Power

product image

VB125ASP Picture
See larger image
SeekIC No. : 00588556 Detail

VB125ASP: Switching Converters, Regulators & Controllers High Voltage Power

VB125ASP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VB125ASP
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Mounting Style : SMD/SMT Package / Case : PowerSO-10
Packaging : Tube

Description

Output Voltage :
Output Current :
Output Power :
Input Voltage :
Switching Frequency :
Operating Temperature Range :
Mounting Style : SMD/SMT
Packaging : Tube
Package / Case : PowerSO-10


Features:

· PRIMARY COIL VOLTAGE INTERNALLY SET
· COIL CURRENT LIMIT INTERNALLY SET
· LOGIC LEVEL COMPATIBLE INPUT
· BATTERY OPERATION
· SINGLE FLAG-ON COIL CURRENT
· TEMPERATURE COMPENSATED HIGH
    VOLTAGE CLAMP

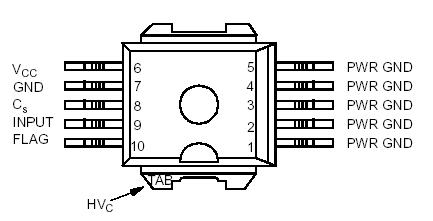

Pinout

Connection Diagram


Specifications

Symbol Parameter and test conditions Value Unit
HVc Collector voltage (Internally limited) -0.3 to Vcl V
IC Collector current (Internally limited) 11.1 A
VCC Driving stage supply voltage -0.2 to 40 V
ICC Driving circuitry supply current 400 mA
IS Logic circuitry supply current 100 mA
VIN Input voltage -0.3 to 6 V
VIN Power dissipation at TC25 °C 100 W
VESD ESD Voltage (HVC pin) -4 to 4 KV
VESD ESD Voltage (other pin) -2 to 2 KV
Tj Junction operating temperature -40 to 150 °C
Tstg Storage temperature Range -55 to 150 °C



Description

The VB125ASP is a high voltage power integrated circuit made using the STMicroelectronics VIPower™ M1-2 technology, with vertical currentG flow power darlington and logic level compatible driving circuit. The VB125ASP can be directly biased by using the 12V battery voltage, thus avoiding to use a low voltage regulator. It has built-in protection circuit for coil current limiting and collector voltage clamping. It is suitable as smart, high voltage, high current interface in advanced electronic ignition system.
