W583000

Features: · New high fidelity speech synthesis algorithm· Direct drive speaker by PWM output or Built-in 8-bit D/A converter· Wide operating voltage range: 2.4 - 5.5 Volts· Addressing capability up to 16M bits (W58300)· IR interface for command Transmission and Receiving· TX, INC and MV instructio...

product image

W583000 Picture
See larger image
SeekIC No. : 004544861 Detail

W583000: Features: · New high fidelity speech synthesis algorithm· Direct drive speaker by PWM output or Built-in 8-bit D/A converter· Wide operating voltage range: 2.4 - 5.5 Volts· Addressing capability up ...

W583000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W583000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  New high fidelity speech synthesis algorithm
·  Direct drive speaker by PWM output or Built-in 8-bit D/A converter
·  Wide operating voltage range: 2.4 - 5.5 Volts
·  Addressing capability up to 16M bits (W58300)
·  IR interface for command Transmission and Receiving
·  TX, INC and MV instructions provided
·  8 trigger inputs - with separate control of falling/rising edge trigger
·  8 STOP outputs
·  Supports CPU interface operation
·  Pad option for Ring or Crystal oscillator
·  Symbolic compiler supported
·  Instruction cycle £ 400 mS typically
·  Section control provided in each voice section
   ¨  Variable frequency: 4.8/6/8/12 KHz
   ¨  LED: ON/OFF
·  Eight general-purpose registers R0 - R7
·  Number of interrupt vector/label up to 2,048
·  Register control instead of various mask options


Pinout

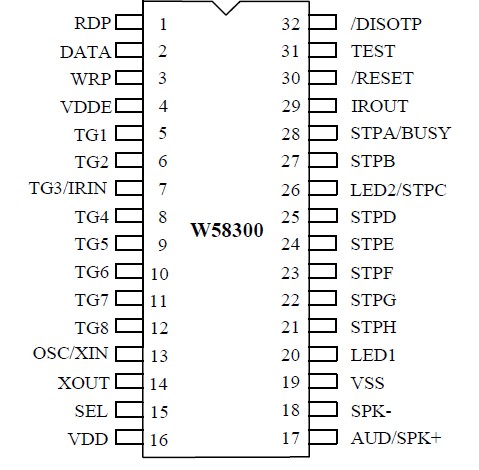

Connection Diagram


Specifications

PARAMETER

SYMBOL

CONDITIONS

RATED VALUE

UNIT

Power Supply

VDD-VSS

-

-0.3 to +7.0

V

Input Voltage

VIN

All Inputs

VSS -0.3 to VDD +0.3

V

Storage Temp.

TSTG

-

-55 to +150

°C

Operating Temp.

TOPR

-

0 to +70

°C




Description

W583xxx is fabricated using the Winbond CMOS process. The W583xxx family is a new member of the PowerSpeechä synthesizer series, with voice quality which is even better than before. The W58300 is a ROMless chip that can support up to maximal 16M bits memory size; the voice length can reach 8.5 minutes. When combined with flash memory W55F05 or W55F20, this chip can be used to demonstrate W583xxx series products like the W583M02, W58S30, W583S10, etc.

The W583xxx family has adopted the same architecture as the PowerSpeechä synthesizers while replacing the 4-bit ADPCM algorithm with Winbond¢s high fidelity speech synthesis algorithm to produce better quality voice. W58xxx provides IR(infrared) function, CPU interface and voice output in DAC current or PWM type.
