Features:

·Integrated Gain, Doubler and Driver Stages
·Self-biased Architecture
·+21.0 dBm Output Power
·35.0 dBc Fundamental Suppression
·RoHS Compliant
·100% On-Wafer RF, DC and Output Power Testing

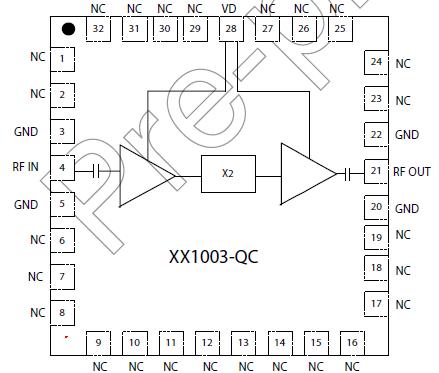

Pinout

Connection Diagram

Specifications

Supply Voltage (Vcc)	+6.0 VDC
Supply Current (Id)	300 mA
Gate Bias Voltage (Vg)	+0.3 VDC
Input Power (RF Pin)	TBD
Storage Temperature (Tstg)	-65 to +165 ^OC
Operating Temperature (Ta)	-55 to MTTF Table ¹
Junction Temperature (Tch)	MTTF Table ¹

(1) Channel temperature affects a device's MTTF. It is recommended to keep channel temperature as low as possible for maximum life.

Description

Mimix Broadband's 14.0-17.0/28.0-34.0 GHz SMD Active Doubler delivers +21dBm of output power. The device integrates a gain stage, passive doubler and driver amplifier into a single device. The X1003-QC provides better than +21dBm of saturated output power and has over 20dB of doubled gain with excellent harmonic rejection. The part is designed with a self-biased architecture which requires a single 5V supply. The X1003-QC comes in a 5x5 mm QFN surface mount package offering excellent RF and thermal properties and is RoHS compliant. This device is well suited for Millimeter-Wave Point-to-Point, LMDS, SATCOM and VSAT applications.
