Z86116

Features: ROM RAM* SPEEDPart(Kbytes) (Kbytes) (MHz)Z86116 1 124 12* General-Purpose` 18-Pin DIP and SOIC Packages` 3.0- to 5.5-Volt Operating Range` Low-Power Consumption` 0° to +70 Temperature Range` Expanded Register File (ERF)` On-Chip PN Modulator for Spread Spectrum Communications` 12 Input/...

product image

Z86116 Picture
See larger image
SeekIC No. : 004550276 Detail

Z86116: Features: ROM RAM* SPEEDPart(Kbytes) (Kbytes) (MHz)Z86116 1 124 12* General-Purpose` 18-Pin DIP and SOIC Packages` 3.0- to 5.5-Volt Operating Range` Low-Power Consumption` 0° to +70 Temperature Ran...

Z86116 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Z86116
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

              ROM              RAM*        SPEED
Part       (Kbytes)     (Kbytes)        (MHz)
Z86116       1               124              12
* General-Purpose
` 18-Pin DIP and SOIC Packages
` 3.0- to 5.5-Volt Operating Range
` Low-Power Consumption
` 0° to +70 Temperature Range
` Expanded Register File (ERF)
` On-Chip PN Modulator for Spread Spectrum Communications
` 12 Input/Output Lines (One with Comparator Input)
` Vectored, Prioritized Interrupts With Programmable Polarity
` Analog Comparator
` Two Programmable 8-Bit Counter/Timers Each with Two 6-Bit Programmable Prescalers
` Watch-Dog Timer (WDT)/Power-On Reset (POR)
` On-Chip Oscillator that Accepts a RC, or External Clock Drive
` Low-Voltage Protection / Low-EMI Option


Pinout

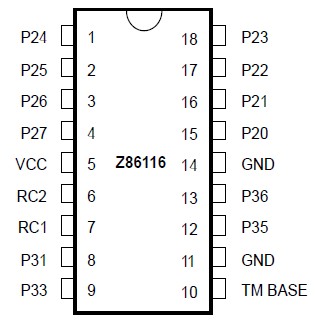

Connection Diagram


Specifications

Sym Parameter Min Max Units
VCC Supply Voltage * 0.3 +7.0 V
TSTG Storage Temp 65 +150 C
TA Oper Ambient Temp †   C

Notes:
* Voltage on all pins with respect to GND.
† See Ordering Information


Description

The Z86116 Wireless Controller is a member of the Z8® single-chip microcontroller family based on Zilog's 8-bit microcontroller core. The Z86116 is designed with specific features for wireless spread spectrum applications using direct sequence pseudo-noise (PN) modulation.

Three address spaces, the Program Memory, Register File, and Expanded Register File (ERF), support a wide range of memory configurations. Through the ERF, the designer has access to three additional control registers that provide extra peripheral devices, I/O ports, and register addresses.For applications demanding powerful I/O capabilities, the Z86116's dedicated input and output lines are grouped into two ports, and are configurable under software control to provide timing, status signals, or parallel I/O.
