Product Details

Description



Features:

• Compliant with ETSI 300 744 DVB-T, Unified Nordig and DTG performance specifications
• High performance with fast fully blind acquisition and tracking capability
• Low power consumption: less than 0.32 W, and eco-friendly standby and sleep modes
• Digital filtering of adjacent channels
• Single 8 MHz SAW filter for 6, 7 & 8 MHz OFDM
• Superior single frequency network performance
• Fast AGC to track out signal fades
• Good Doppler tracking capability
• Enhanced frequency capture range to include triple offsets
• External 4 MHz clock or single low-cost 20.48 MHz crystal, tolerance up to +/-200 ppm
• Automatic mode (2K/8K), guard and spectral inversion detection
• Very low driver software overhead due to on-chip state-machine control
• Novel RF level detect facility via a separate ADC
• Pre and post Viterbi-decoder bit error rates, and uncorrectable block count


Application

• Digital terrestrial set-top boxes
• Integrated digital televisions
• Personal video recorders
• PC-TV receivers
• Portable applications

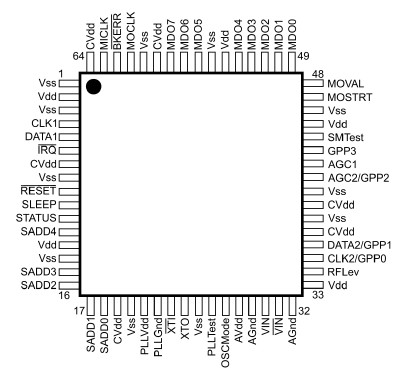

Pinout

Connection Diagram


Specifications

Parameter Symbol Min. Max. UNIT
Power supply VDD -0.3 +3.6 V
CVDD -0.3 +2.0 V
Voltage on input pins (5 V rated) VI -0.3 5.5 V
Voltage on input pins (3.3 V rated) VI -0.3 VDD + 0.3 V
Voltage on output pins (5 V rated) VO -0.3 5.5 V
Voltage on output pins (3.3 V rated) VO -0.3 VDD + 0.3 V
Storage temperature TSTG -55 150
Operating ambient temperature TOP -10 80
Junction Temperature Tj   125


Note: Stresses exceeding these listed under absolute maximum ratings may induce failure. Exposure to absolute maximum ratings for extended periods may reduce reliability. Functionality at or above these conditions is not implied.




Description

The ZL10353 is a superior fourth generation fully compliant ETSI ETS300 744 COFDM demodulator that exceeds, with margin, the performance requirements of all known DVB-T digital terrestrial television standards, including Unified Nordig and DTG.
