2N7002W, 2N7002W-7, 2N7002W-7-F

Table of contents:
Info of 2N7002W
Info of 2N7002W-7
Info of 2N7002W-7-F

2N7002W, 2N7002W-7, 2N7002W-7-F Selling Leads, Datasheet

MFG:Diodes Inc (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-323 D/C:09+/10+

2N7002W, 2N7002W-7, 2N7002W-7-F Datasheet download

Five Points

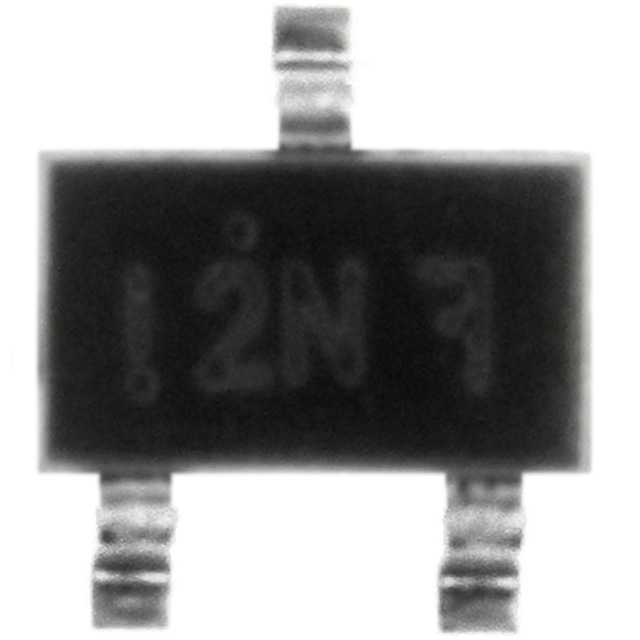

Part Number: 2N7002W

Category: Discrete Semiconductor Products

MFG: Diodes Inc (VA)

Package Cooled: SOT-323

D/C: 09+/10+

Description: MOSFET N-CHANNEL 60V SOT323

Price Break

3000
6000
12000

Unit Price

.07500
.06750
.06000

Extended Price

225.00
405.00
720.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

2N7002W Parameters

Technical/Catalog Information	2N7002W
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	115mA
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds	50pF @ 25V
Power - Max	200mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	-
Package / Case	SOT-323
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N7002W 2N7002W 2N7002WTR ND 2N7002WTRND 2N7002WTR

2N7002W Maximum Ratings

Part Number	2N7002W
Config/ Polarity	N
P_D (W)	0.2
V_DSS (V)	60
V_GSS(+/-) (V)	20
I_D (A)	0.115
R_{DS(on) Max}(Ω) @ V_GS; 1.8V
R_{DS(on) Max}(Ω) @ V_GS; 2.5V
R_{DS(on) Max}(Ω) @ V_GS; 4.0V
R_{DS(on) Max}(Ω) @ V_GS; 4.5V
R_{DS(on) Max}(Ω) @ V_GS; 5V	7.5
R_{DS(on) Max}(Ω) @ V_GS; 10.0V
V_GS(th) (V)	2
C_iss (typ) (pF)	22
Qg (typ) (nC) @ V_GS;4.5V
Qg (typ) (nC) @ V_GS;5V
Qg (typ) (nC) @ V_GS;10V

2N7002W-7 Parameters

Technical/Catalog Information	2N7002W-7
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	115mA
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds	50pF @ 25V
Power - Max	200mW
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	-
Package / Case	SOT-323
FET Feature	Standard
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	2N7002W 7 2N7002W7 2N7002WDITR ND 2N7002WDITRND 2N7002WDITR

2N7002W-7-F Parameters

Technical/Catalog Information	2N7002W-7-F
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	115mA
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 50mA, 5V
Input Capacitance (Ciss) @ Vds	50pF @ 25V
Power - Max	200mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	-
Package / Case	SOT-323
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N7002W 7 F 2N7002W7F 2N7002W FDIDKR ND 2N7002WFDIDKRND 2N7002W-FDIDKR

2N7002W-7-F General Description

The 2N7002W-7-F is a type of N-channel enhancement mode fifled effect transistor.

Features of the 2N7002W-7-F are:(1)low on-resistance;(2)low gate threshold voltage;(3)low input capacitance;(4)fa st switching speed;(5)low input/output leakage;(6)ultra-small surface mount package;(7)lead free/RoHS compliant (No purposefully added lead).

The absolute maximum ratings and electrical characteristics(TA = 25)of the 2N7002W-7-F can be summarized as:(1):drain-source voltage is 60 V;(2):drain-gate voltage is 60 V when Rgs is 1.0M or less than 1.0M;(3):gate-sour ce voltage(continuous) is ±20V;(4):drain current(Continuous) is 115mA; (5):total power dissipation is 200mW when Derating above TA is 25°C ;(6):thermal resistance, junction to ambient is 625 K/W;(7):operating and storage temp erature Ranges from -55°C to +150°C.Electrical characteristics:(1)drain-source breakdown voltage is 60V min and 70V max when VGS is 0V and ID is 10uA;(2):gate-body leakage is±10 nA max when VGS is±20V and VDS is 0V;(3): gate threshold voltage is 1.0V min and 2.0 V max when VDS is VGS and ID is 250uA;(4):input capacitance is 22pF typ and 50 pF max when VDS is 25V, VGS is 0V and f is 1.0MHz;(5):turn-on delay time tD(ON) is 7.0ns typ and 20ns max when VDD is 30V, ID is 0.2A,RL is 150, VGEN is 10V and RGEN is 25.etc.
