BSO4263GS, BSO4410, BSO4420

Table of contents:
Info of BSO4263GS
Info of BSO4410
Info of BSO4420

BSO4263GS, BSO4410, BSO4420 Selling Leads, Datasheet

MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:05+ D/C:3300

BSO4263GS, BSO4410, BSO4420 Datasheet download

Five Points

Part Number: BSO4410

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: 05+

D/C: 3300

Description: MOSFET N-CH 30V 13A 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

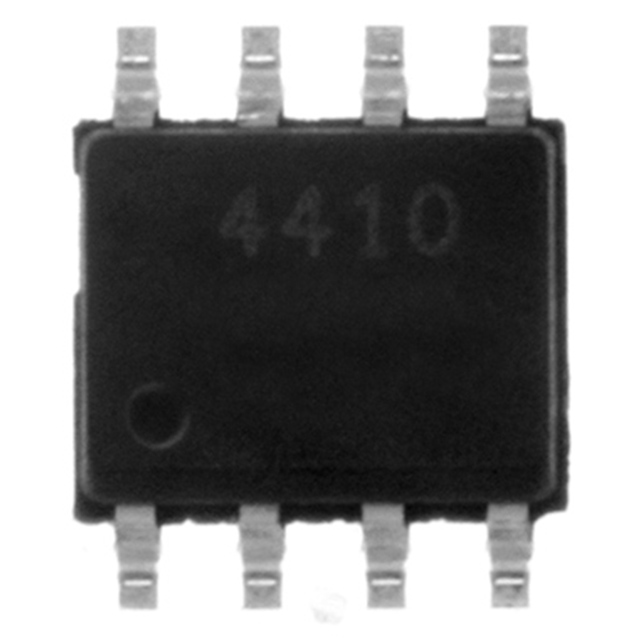

BSO4410 Parameters

Technical/Catalog Information	BSO4410
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	11.1A
Rds On (Max) @ Id, Vgs	13 mOhm @ 11.1A, 10V
Input Capacitance (Ciss) @ Vds	1280pF @ 25V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	21nC @ 5V
Package / Case	8-SOIC
FET Feature	Logic Level Gate
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	BSO4410 BSO4410 BSO4410INTR ND BSO4410INTRND BSO4410INTR

BSO4410 Maximum Ratings

Parameter	Symbol	Values	Unit
Continuous drain current T_A=25°C T_A=70°C	I_D	11.1 8.9	A
Pulsed drain current T_A=25°C	I_Dpulse	44.5	A
Avalanche energy, single pulse I_D=12.7 A , V_DD=25V, R_GS=25	E_AS	126	mJ
Reverse diode dv/dt I_S=12.7A, V_DS=24V, di/dt=200A/s, T_jmax=150°C	dv/dt	6	kV/s
Gate source voltage	V_GS	±25	V
Power dissipation T_A=25°C	P_tot	2.5	W
Operating and storage temperature	T _j , T _stg	-55 ... +150	°C
IEC climatic category, DIN IEC 68-1		55/150/56

BSO4410 Features

• N-Channel
• Enhancement mode
• Logic Level
• Excellent Gate Charge x R_DS(on) product (FOM)
• 150°C operating temperature
• Avalanche rated
• dv/dt rated
• Ideal for fast switching applications

BSO4420 Parameters

Technical/Catalog Information	BSO4420
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	13A
Rds On (Max) @ Id, Vgs	7.8 mOhm @ 13A, 10V
Input Capacitance (Ciss) @ Vds	2213pF @ 25V
Power - Max	2.5W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	33.7nC @ 5V
Package / Case	8-SOIC
FET Feature	Logic Level Gate
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	BSO4420 BSO4420 BSO4420INTR ND BSO4420INTRND BSO4420INTR

BSO4420 Maximum Ratings

Parameter	Symbol	Values	Unit
Continuous drain current T_A=25°C	I_D	13	A
Pulsed drain current T_A=25°C	I_Dpulse	52	A
Avalanche energy, single pulse I_D=12.7 A , V_DD=25V, R_GS=25	E_AS	230	mJ
Reverse diode dv/dt I_S=12.7A, V_DS=24V, di/dt=200A/s, T_jmax=150°C	dv/dt	6	kV/s
Gate source voltage	V_GS	±25	V
Power dissipation T_A=25°C	P_tot	2.5	W
Operating and storage temperature	T _j , T _stg	-55 ... +150	°C
IEC climatic category, DIN IEC 68-1		55/150/56

BSO4420 Features

• N-Channel
• Logic Level
• Very low on-resistance R_DS(on)
• Excellent Gate Charge x R_DS(on) product (FOM)
• 150°C operating temperature
• Avalanche rated
• dv/dt rated
• Ideal for fast switching applications
