MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:. D/C:06+
BSP128, BSP129, BSP129E6327 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: .
D/C: 06+
Description: MOSFET N-CH 240V 350MA SOT223
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BSP128
File Size: 52028 KB
Manufacturer: PHILIPS [Philips Semiconductors]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BSP129
File Size: 211207 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BSP030
File Size: 111955 KB
Manufacturer: PHILIPS [Philips Semiconductors]
Download : Click here to Download
N-channel enhancement mode vertical D-MOS transistor in a SOT223 envelope and intended for use as a line current interruptor in telephone sets and for applications in relay, high-speed and line transformer drivers.
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
VDS |
drain-source voltage |
200 |
V | ||
|
±VGSO |
gate-source voltage |
open drain |
20 |
V | |
|
ID |
DC drain current |
350 |
mA | ||
|
IDM |
peak drain current |
1.4 |
A | ||
|
Ptot |
total power dissipation |
up to Tamb = 25 °C; note 1 |
1.5 |
W | |
|
Tstg |
storage temperature |
-65 |
150 |
°C | |
|
Tj |
operating junction temperature |
150 |
°C |
Note
1. Device mounted on an epoxy printed-circuit board, 40 x 40 x 1.5 mm, mounting pad for the drain tab minimum 6 cm2.
|
Parameter |
Symbol |
Value |
Unit |
|
Continuous drain current TA=25° C TA=70°C |
ID |
0.35 |
A |
|
Pulsed drain current TA=25°C |
I D puls |
1.4 | |
|
Reverse diode dv/dt |
dv/dt |
6 |
kV/s |
|
Gate source voltage |
V GS |
± 20 |
V |
|
ESD sensitivity (HBM) as per |
|
Class 1 |
|
|
Power dissipation TA=25°C |
Ptot |
1.8 |
V |
|
Operating and storage temperature |
Tj , Tstg |
-55... +150 |
W |
|
IEC climatic category; DIN IEC 68-1 |
55/150/00 |
°C |
| Technical/Catalog Information | BSP129E6327 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 240V |
| Current - Continuous Drain (Id) @ 25° C | 350mA |
| Rds On (Max) @ Id, Vgs | 6 Ohm @ 350mA, 10V |
| Input Capacitance (Ciss) @ Vds | 108pF @ 25V |
| Power - Max | 1.8W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 5.7nC @ 5V |

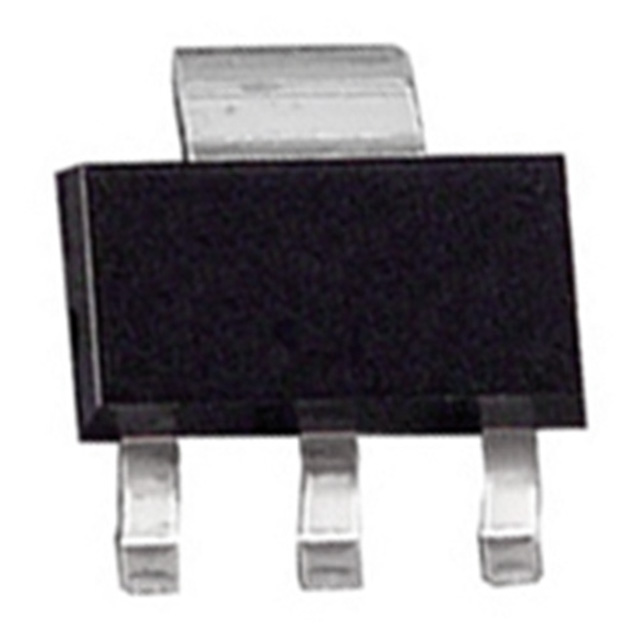

| Package / Case | SOT-223, SC-73, TO-261 (3 Leads + Tab) |
| FET Feature | Depletion Mode |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | BSP129E6327 BSP129E6327 BSP129INTR ND BSP129INTRND BSP129INTR |
