BSP742RI, BSP742-RI, BSP742T

Table of contents:
Info of BSP742RI
Info of BSP742-RI
Info of BSP742T

BSP742RI, BSP742-RI, BSP742T Selling Leads, Datasheet

MFG:Infineon Technologies (VA) Category:Integrated Circuits (ICs) Package Cooled:SMD8 D/C:04+

BSP742RI, BSP742-RI, BSP742T Datasheet download

Five Points

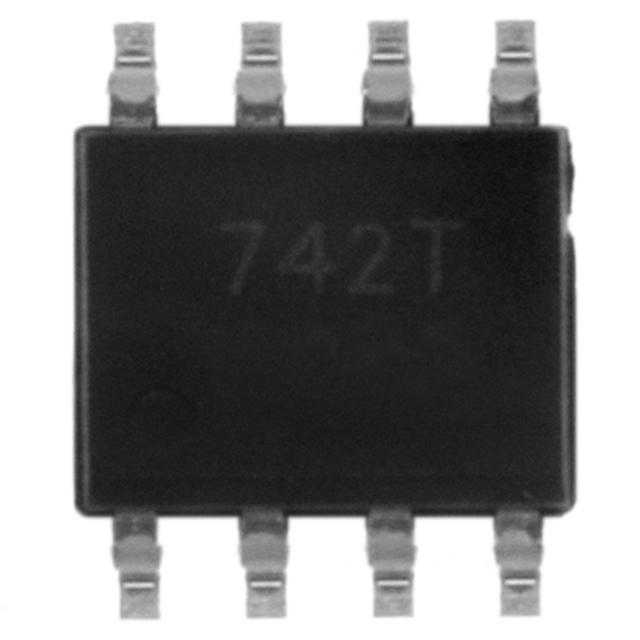

Part Number: BSP742T

Category: Integrated Circuits (ICs)

MFG: Infineon Technologies (VA)

Package Cooled: SMD8

D/C: 04+

Description: IC POWER HI SIDE SWITCH P-DSO-8

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BSP742RI Parameters

Technical/Catalog Information	BSP742RI
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Package / Case	DSO-8
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5 V ~ 34 V
On-State Resistance	250 mOhm
Current - Output / Channel	400mA
Current - Peak Output	1.2A
Packaging	Tape & Reel (TR)
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BSP742RI BSP742RI

BSP742RI General Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS^®technology. Providing embedded protective functions.

BSP742RI Maximum Ratings

Parameter	Symbol	Value	Unit
Supply voltage	V_bb	40	V
Supply voltage for full short circuit protection	V_bb(SC)	V_bb
Continuous input voltage	V_IN	-10 ... +16
Load current (Short - circuit current, see page⁵)	I_L	self limited	A
Current through input pin (DC)	I_IN	± 5	mA
Operating temperature	T_j	-40 ...+150	°C
Storage temperature	T_stg	-55 ... +150	°C
Power dissipation ¹⁾	P_tot	1.5	W
Inductive load switch-off energy dissipation1)²⁾ single pulse, (see page 9 ) T_j =150 °C, I_L = 1 A	E_AS	800	mJ
Load dump protection2) VLoadDump3)= V_A+ V_S R_I=2, t_d=400ms, V_IN= low or high, V_A=13,5V R_L= 13.5 R_L= 27	V_Loaddump	60	V
Electrostatic discharge voltage (Human Body Model) according to ANSI EOS/ESD - S5.1 - 1993 ESD STM5.1 - 1998 Input pin all other pins	V_ESD	± 1 ± 5	kV

BSP742RI Features

• Overload protection
• Current limitation
• Short circuit protection
• Thermal shutdown with restart
• Overvoltage protection (including load dump)
• Fast demagnetization of inductive loads
• Reverse battery protection with external resistor
• Open drain diagnostic output
• CMOS compatible input
• Loss of GND and loss of V_bb protection
• ESD - Protection
• Very low standby current

BSP742RI Typical Application

• All types of resistive, inductive and capacitive loads
• µC compatible power switch for 12 V and 24 V DC applications
• Replaces electromechanical relays and discrete circuits

BSP742RI Connection Diagram

BSP742T Parameters

Technical/Catalog Information	BSP742T
Vendor	Infineon Technologies (VA)
Category	Integrated Circuits (ICs)
Package / Case	DSO-8
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5 V ~ 34 V
On-State Resistance	260 mOhm
Current - Output / Channel	1.1A
Current - Peak Output	4A
Packaging	Digi-Reel?
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	BSP742T BSP742T BSP742TINDKR ND BSP742TINDKRND BSP742TINDKR
