IXTA10N60P, IXTA110N055P, IXTA12N50P

Table of contents:
Info of IXTA10N60P
Info of IXTA110N055P
Info of IXTA12N50P

IXTA10N60P, IXTA110N055P, IXTA12N50P Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:TO-263 D/C:TO-263AB

IXTA10N60P, IXTA110N055P, IXTA12N50P Datasheet download

Five Points

Part Number: IXTA12N50P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: TO-263

D/C: TO-263AB

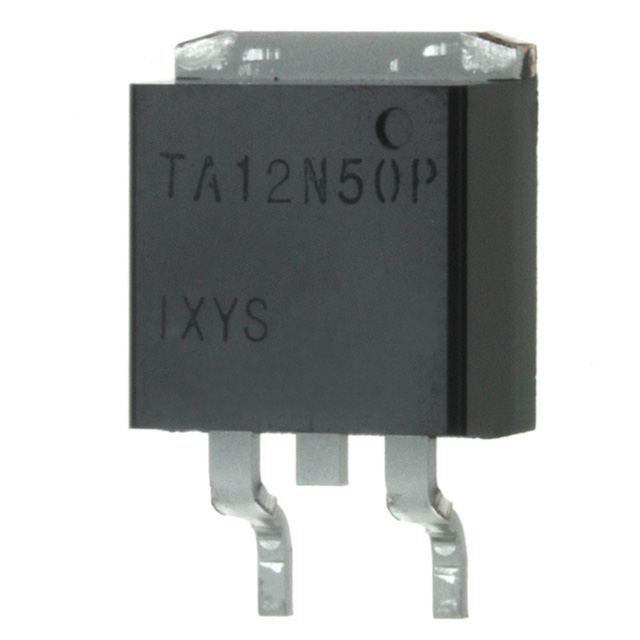

Description: MOSFET N-CH 500V 12A D2-PAK

Price Break

250

Unit Price

1.42100

Extended Price

355.25

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXTA10N60P Parameters

Technical/Catalog Information	IXTA10N60P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25° C	10A
Rds On (Max) @ Id, Vgs	740 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	1610pF @ 25V
Power - Max	200W
Packaging	Tube
Gate Charge (Qg) @ Vgs	32nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTA10N60P IXTA10N60P

IXTA110N055P Parameters

Technical/Catalog Information	IXTA110N055P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25° C	110A
Rds On (Max) @ Id, Vgs	13.5 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	2210pF @ 25V
Power - Max	390W
Packaging	Tube
Gate Charge (Qg) @ Vgs	76nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTA110N055P IXTA110N055P

IXTA110N055P Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
V_CESV_CGR	T_J = 25 to 150 600 T_J= 25 to 150 ; R_GE = 1 M	55 55	V
V_GES V_GEM	Continuous Transient	±20 ±30	V V
I_D25 I_DM	T_C = 25 External lead current limit T_C = 25, pulse width limited by TJM	110 75 250	A A
I_AR E_ARE_AS	T_C = 25 T_C = 25 T_C = 25	110 30 1.0	A mJ J
dv/dt	I_S I_DM, di/dt 100 A/µs, V_DD V_DSS, T_J 150°C, R_G = 4 Ω	10	V/ns
P_D	T_C = 25	330	W
T_J T_JM T_stg		-55 ... +150 150 -55 ... +150	°C °C °C
T_L	1.6 mm (0.062 in.) from case for 10 s	300	°C
M_d	Mounting torque(TO-3P / TO-220)	1.13/10	Nm/lb.in.
Weight	TO-3P TO-220 TO-263	5.5 4 3	g g g

IXTA110N055P Features

·International standard packages
·Unclamped Inductive Switching (UIS) rated
·Low package inductance
- easy to drive and to protect

IXTA110N055P Typical Application

·Easy to mount
·Space savings
·High power density

IXTA12N50P Parameters

Technical/Catalog Information	IXTA12N50P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	12A
Rds On (Max) @ Id, Vgs	500 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	1830pF @ 25V
Power - Max	200W
Packaging	Tube
Gate Charge (Qg) @ Vgs	29nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTA12N50P IXTA12N50P
