MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:IXYS D/C:07+
IXTK33N50, IXTK46N50L, IXTL25N10 Datasheet download
Category: Discrete Semiconductor Products
MFG: IXYS
Package Cooled: IXYS
D/C: 07+
Description: MOSFET N-CH 500V 46A TO-264
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IXTK33N50
File Size: 87407 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXTA 3N120
File Size: 576233 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXTA 3N120
File Size: 576233 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | IXTK33N50 |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25° C | 33A |
| Rds On (Max) @ Id, Vgs | 170 mOhm @ 500mA, 10V |
| Input Capacitance (Ciss) @ Vds | 4900pF @ 25V |
| Power - Max | 416W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 250nC @ 10V |
| Package / Case | TO-264AA |
| FET Feature | Standard |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXTK33N50 IXTK33N50 |

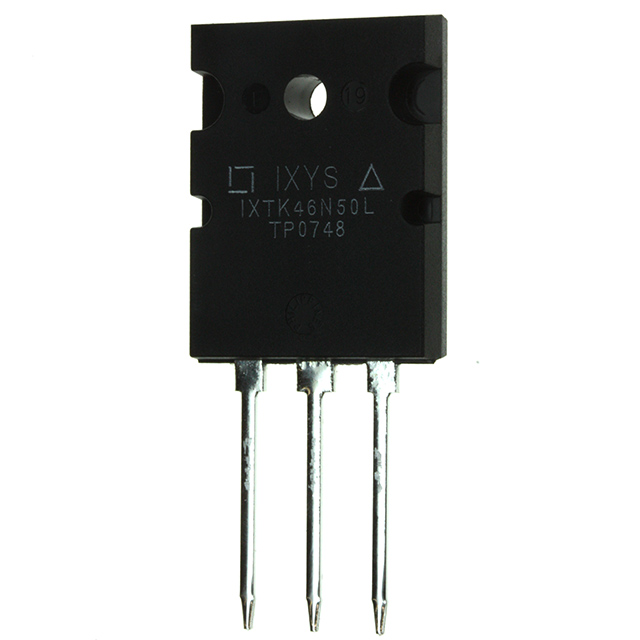

| Technical/Catalog Information | IXTK46N50L |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25° C | 46A |
| Rds On (Max) @ Id, Vgs | 160 mOhm @ 500mA, 20V |
| Input Capacitance (Ciss) @ Vds | 7000pF @ 25V |
| Power - Max | 700W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 260nC @ 15V |
| Package / Case | TO-264 |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXTK46N50L IXTK46N50L |
