IXTP30N08, IXTP3N110, IXTP3N120

Table of contents:
Info of IXTP30N08
Info of IXTP3N110
Info of IXTP3N120

IXTP30N08, IXTP3N110, IXTP3N120 Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:09+ D/C:08+/09+

IXTP30N08, IXTP3N110, IXTP3N120 Datasheet download

Five Points

Part Number: IXTP3N120

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: 09+

D/C: 08+/09+

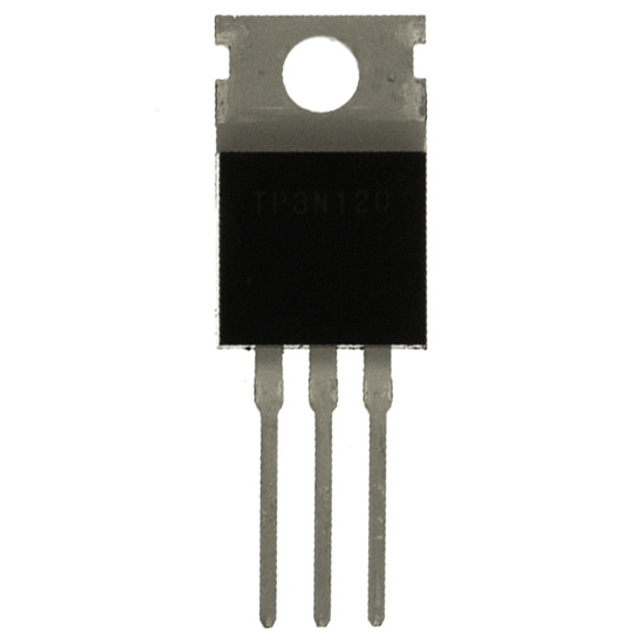

Description: MOSFET N-CH 1.2KV 3A TO-220AB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXTP3N110 Parameters

Technical/Catalog Information	IXTP3N110
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	1100V (1.1kV)
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	4.5 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	1350pF @ 25V
Power - Max	200W
Packaging	Tube
Gate Charge (Qg) @ Vgs	42nC @ 10V
Package / Case	TO-220
FET Feature	Standard
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTP3N110 IXTP3N110

IXTP3N110 Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
VC_ES V_CGR	T_J = 25°C to 150°C T_J= 25°C to 150°C; R_GE = 1 M	3N120 1200 3N110 1100 3N120 1200 3N110 1100	V V
V_GES V_GEM	Continuous Transient	±20 ±30	V V
I_D25 I_DMI_AR	T_C = 25°C T_C = 25°C, pulse width limited by TJM T_C = 25°C	3 12 3	A A A
E_AR E_AS	T_C = 25°C	20 700	mJ mJ
dv/dt	IS IDM, di/dt 100 A/µs, VDD VDSS, TJ 150°C, RG = 2 Ω	5	V/ns
P_D	TC = 25°C	25	W
T_J T_JMT_stg		-55 ... +150 150 -55 ... +150	°C °C °C
T_L	1.6 mm (0.063 in.) from case for 10 s	300	°C
M_d	Mounting torque (TO-220)	1.13/10	Nm/lb.in.
Weight	TO-220 TO-263	4 2	g g

IXTP3N110 Features

· International standard packages
· Low RDS (on)
· Rated for unclamped Inductive load Switching (UIS)
· Molding epoxies meet UL 94 V-0 flammability classification

IXTP3N110 Typical Application

· Easy to mount
· Space savings
· High power density

IXTP3N120 Parameters

Technical/Catalog Information	IXTP3N120
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	4.5 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	1350pF @ 25V
Power - Max	200W
Packaging	Tube
Gate Charge (Qg) @ Vgs	42nC @ 10V
Package / Case	TO-220
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTP3N120 IXTP3N120

IXTP3N120 Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
VC_ES V_CGR	T_J = 25°C to 150°C T_J= 25°C to 150°C; R_GE = 1 M	3N120 1200 3N110 1100 3N120 1200 3N110 1100	V V
V_GES V_GEM	Continuous Transient	±20 ±30	V V
I_D25 I_DMI_AR	T_C = 25°C T_C = 25°C, pulse width limited by TJM T_C = 25°C	3 12 3	A A A
E_AR E_AS	T_C = 25°C	20 700	mJ mJ
dv/dt	IS IDM, di/dt 100 A/µs, VDD VDSS, TJ 150°C, RG = 2 Ω	5	V/ns
P_D	TC = 25°C	25	W
T_J T_JMT_stg		-55 ... +150 150 -55 ... +150	°C °C °C
T_L	1.6 mm (0.063 in.) from case for 10 s	300	°C
M_d	Mounting torque (TO-220)	1.13/10	Nm/lb.in.
Weight	TO-220 TO-263	4 2	g g

IXTP3N120 Features

· International standard packages
· Low RDS (on)
· Rated for unclamped Inductive load Switching (UIS)
· Molding epoxies meet UL 94 V-0 flammability classification

IXTP3N120 Typical Application

· Easy to mount
· Space savings
· High power density
