IXTY1N80, IXTY1R4N60P, IXTY1R6N50P

Table of contents:
Info of IXTY1N80
Info of IXTY1R4N60P
Info of IXTY1R6N50P

IXTY1N80, IXTY1R4N60P, IXTY1R6N50P Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:TO-252AA (D PAK) D/C:2006

IXTY1N80, IXTY1R4N60P, IXTY1R6N50P Datasheet download

Five Points

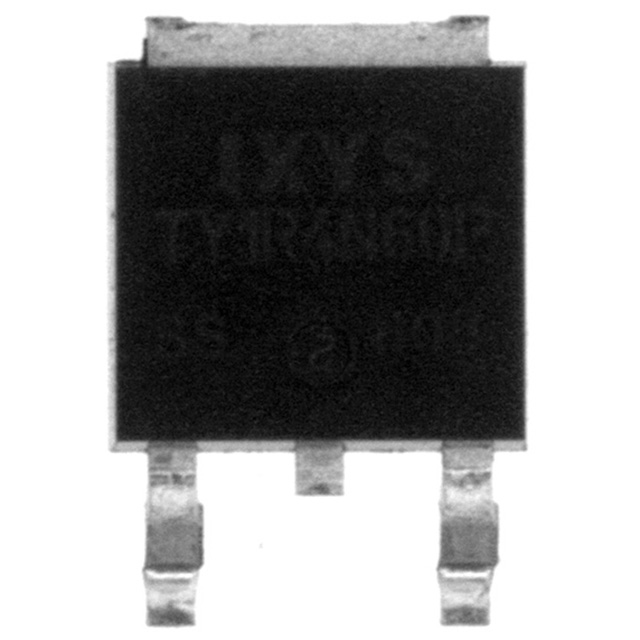

Part Number: IXTY1R4N60P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: TO-252AA (D PAK)

D/C: 2006

Description: MOSFET N-CH 500V 1.6A DPAK

Price Break

250

Unit Price

1.14560

Extended Price

286.40

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXTY1N80 Parameters

Technical/Catalog Information	IXTY1N80
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25° C	750mA
Rds On (Max) @ Id, Vgs	11 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	220pf @ 25V
Power - Max	40W
Packaging	Bulk
Gate Charge (Qg) @ Vgs	8.5nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTY1N80 IXTY1N80

IXTY1N80 Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
VDSS VDGR	TJ = 25°C to 150°CV TJ = 25°C to 150°C; RGS = 1 M	800 800	V V
VGS VGSM	Continuous Transient	±20 ±30	V V
ID25 IDM	TC = 25°C TC = 25°C, pulse width limited by TJM	750 3	mA mA
IAR EAR EAS	TC = 25°C TC = 25°C	1.0 5 100	A mJ mJ
dv/dt	IS IDM, di/dt 100 A/s, VDD VDSS, TJ 150°C, RG = 47	3	V/ns
PD	TC = 25°C	40	W
TJ TJM		-55 ... +150 150 Tstg -55 ... +150	°C °C °C

IXTY1R4N60P Parameters

Technical/Catalog Information	IXTY1R4N60P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25° C	1.4A
Rds On (Max) @ Id, Vgs	9 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	140pF @ 25V
Power - Max	50W
Packaging	Tube
Gate Charge (Qg) @ Vgs	5.2nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTY1R4N60P IXTY1R4N60P

IXTY1R6N50P Parameters

Technical/Catalog Information	IXTY1R6N50P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	1.6A
Rds On (Max) @ Id, Vgs	6.5 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	140pF @ 25V
Power - Max	43W
Packaging	Tube
Gate Charge (Qg) @ Vgs	3.9nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXTY1R6N50P IXTY1R6N50P

IXTY1R6N50P Maximum Ratings

Symbol	Test Conditions	Maximum Ratings
VDSS V_DGR	T_J= 25 to 150 T_J= 25 to 150; R_GS = 1 MΩ	500 500	V V
V_GSV_GSM	Continuous Transient	±30 ±40	V V
I_D25I_DM	T_C = 25 T_C = 25, pulse width limited by T_JM	1.6 2.5	A A
I_ARE_AR E_AS	T_C= 25 T_C = 25 T_C= 25	1.6 5 75	A mJ mJ
dv/dt	I_S I_DM, di/dt 100 A/µs, V_DD V_DSS, T_J 150, R_G= 50 Ω	10	V/ns
P_D	T_C= 25	43	W
T_JT_JMT_stg		-55 ... +150 150 -55 ... +150
T_L	1.6 mm (0.062 in.) from case for 10s Maximum tab temperature for soldering TO-252 package for 10s	300 260
M_d	Mounting torque (TO-220)	1.13/10	Nm/lb.in.
Weight	TO-252 TO-220	0.8 4	g g

IXTY1R6N50P Features

·International standard packages
·Unclamped Inductive Switching (UIS) rated
·Low package inductance
- easy to drive and to protect

IXTY1R6N50P Typical Application

·Easy to mount
·Space savings
·High power density
