ANALOG_SUM_OF_DIGITAL_NUMBERS

Published:2009/6/30 3:04:00 Author:May | From:SeekIC

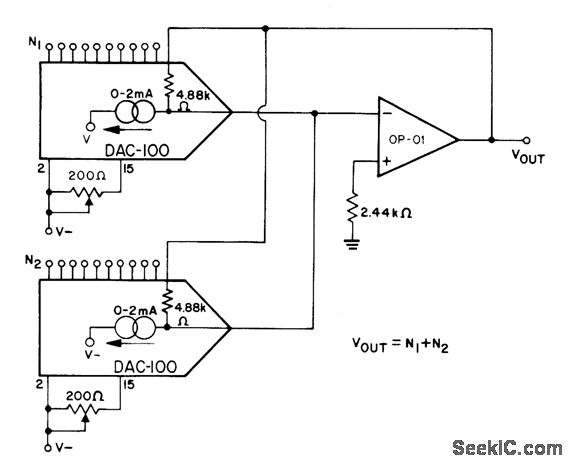

Two Precision Monolithics DAC-100 D/A convelters and op-01 opamp combine conversion with adding to give high-precision DC output voltage，200-ohm pots are adjusted initially to give exactly desired output for input of all 0s，— 8 ＆10 Bit Digital-to-Analog Converter, Precision Monolithics, Santa Clara, CA, 1977、DAC-100, p 5.
