AN366,AN366P AM frequency conversion, FM AM intermediate frequency amplifier integrated circuit

Published:2011/8/25 20:11:00 Author:TaoXi | Keyword: AM, frequency conversion, FM, intermediate frequency, amplifier, integrated circuit | From:SeekIC

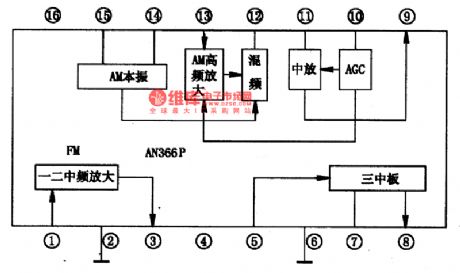

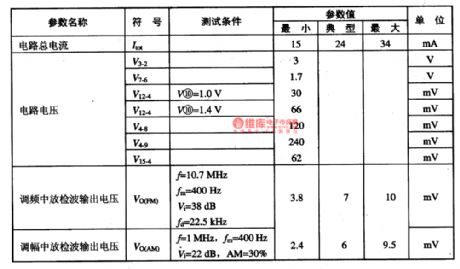

The AN366 and AN366P are designed as the AM frequency conversion, FM AM intermediate frequency amplifier integrated circuit that is produced by the Panasonic company, and this device can be used in the radio and home stereo system. The two kinds of IC have the same functions, the difference between them is the electric parameters. 1.The internal circuit block diagram and pin functions of the AN366P The AN366P has the FM system and the AM system, the FM and AM intermediate frequency amplifier can be connected with the ceramic filter; the detection-wave output levels of the FM and AM are the same. This IC uses the dual-row DIP package, the internal circuit block diagram is as shown in figure 1-12, the pin functions and data are as shown in table 1-1.
