915MHz RF amplifier circuit composed of RF2103P

Published:2011/4/11 2:36:00 Author:may | Keyword: RF amplifier | From:SeekIC

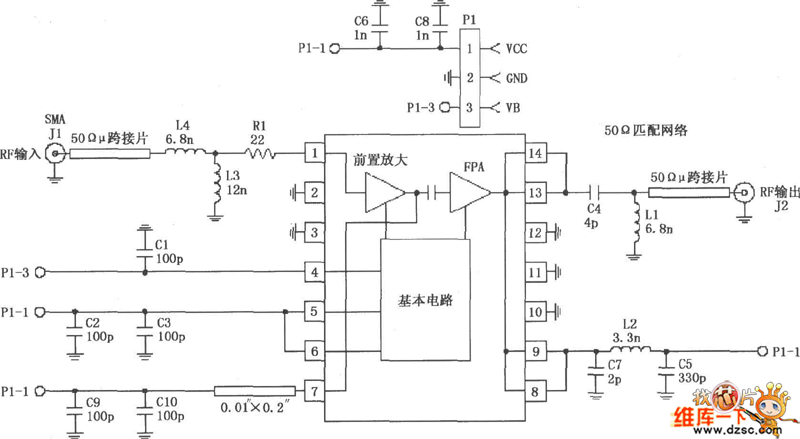

The picture is 915MHz RF amplifier circuit composed of RF2103P. P1 is socket, among which, P1-1 connect power Vcc, P1-2 connect ground, P1-3 connect power down control voltage VB; J2 is RF output socket.
