42O_MC_OSCILLATOR_MIXER

Published:2009/7/13 5:10:00 Author:May | From:SeekIC

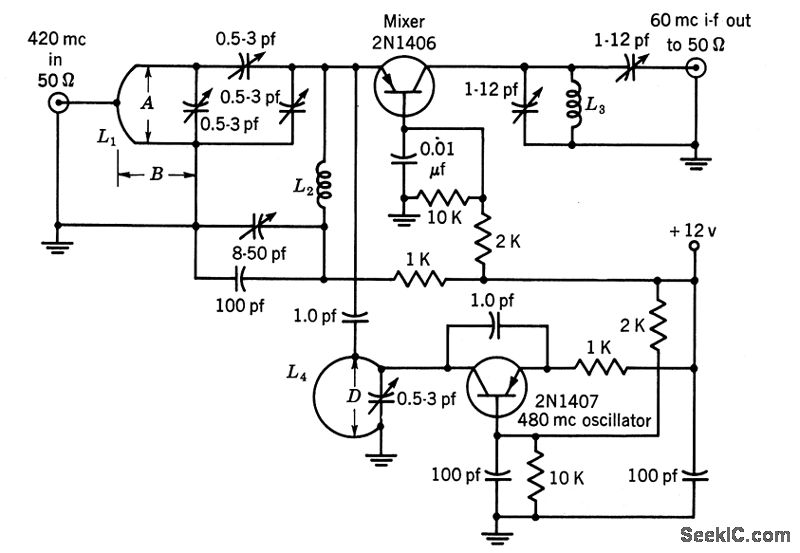

Common-base mixer is used with 480-Mc oscillator to give 60-Mc i-f output, with 10 db average conversion gain.-Texas Instruments Inc. Tran-sistor Circuit Design, McGraw-Hill, N.Y. 1963, p327.
