BALANCED_INPUT_MIXER

Published:2009/7/13 4:40:00 Author:May | From:SeekIC

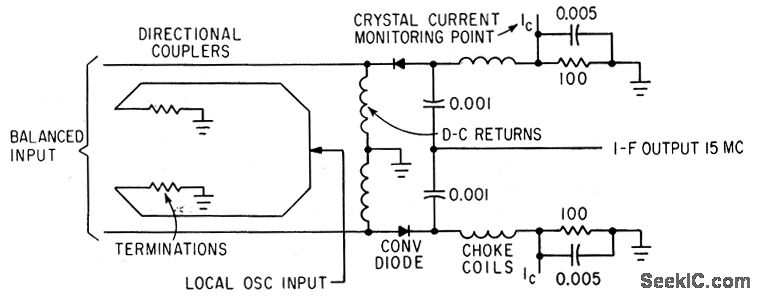

Used with frequency-independent antennas to provide noise cancellation as balanced-input converter.-C. Strother, Jr. and C. R. Lundquist, Balinverter-Frequency-Insensitive Balanced Converter, Electronics, 35:44, p46-47.
