DUAL_PREAMP

Published:2009/6/15 23:06:00 Author:May | From:SeekIC

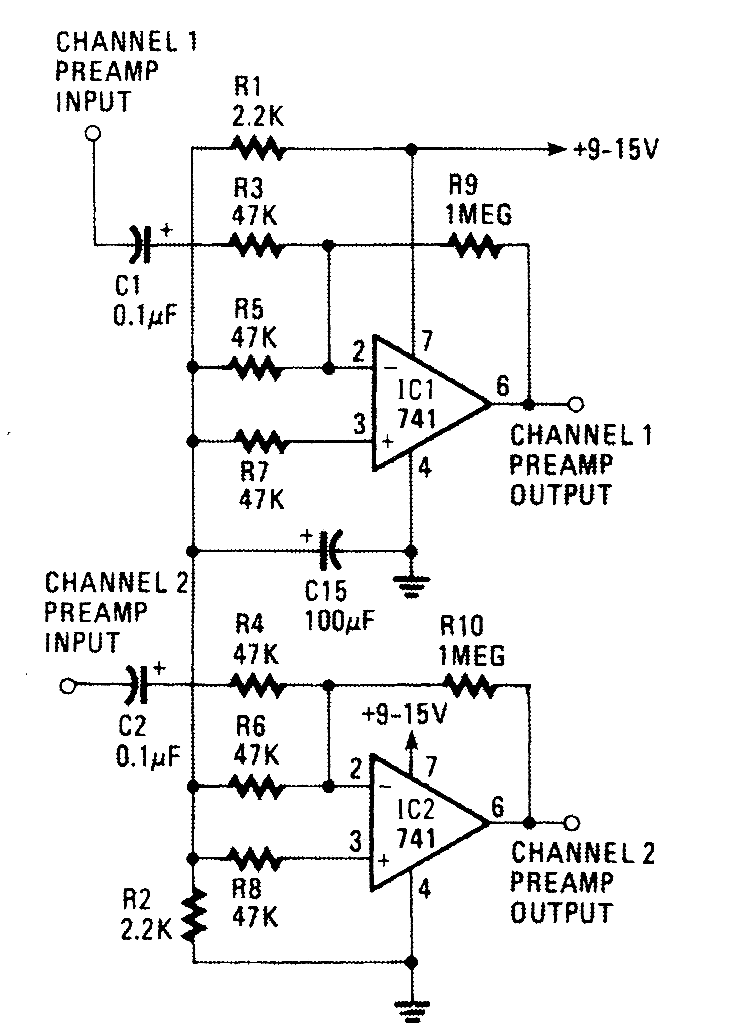

If you wish to amplify low-levle signals,such as the output of a turntable, the signal must first be fed to this preamp.
