GENERAL_PURPOSE_JFET_PREAMP

Published:2009/6/15 3:31:00 Author:May | From:SeekIC

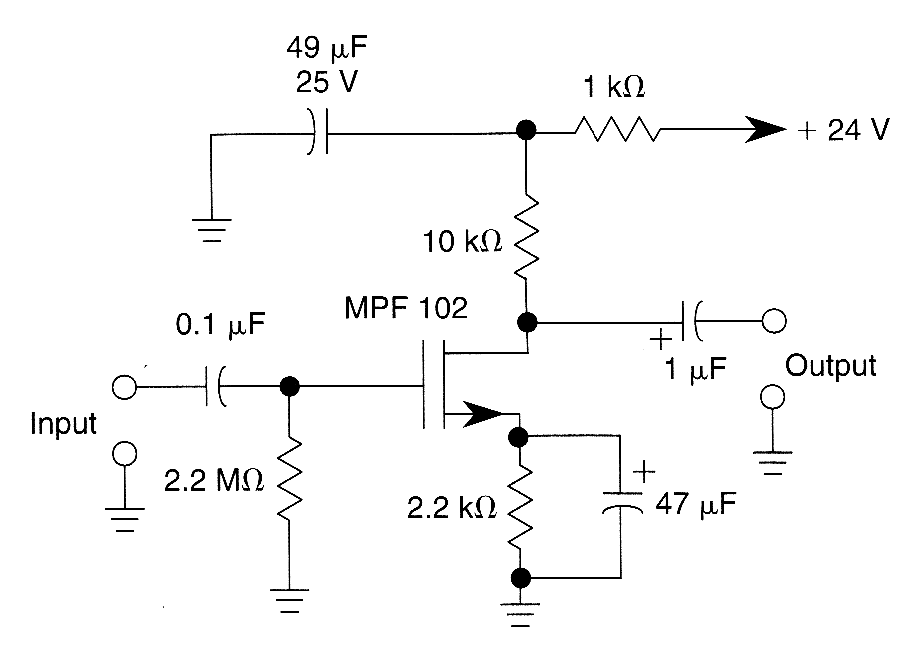

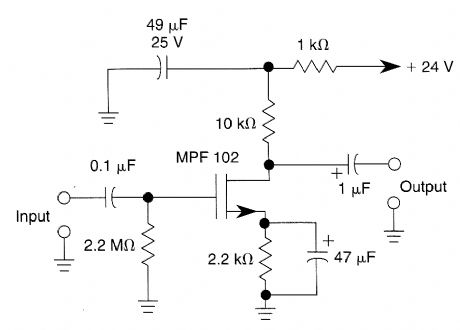

This JFET preamplifier has a gain of about 20dB and a bandwidth of over 100kHz. It is use-ful as a low-level audio amplifier for high-imped-ance sources.
