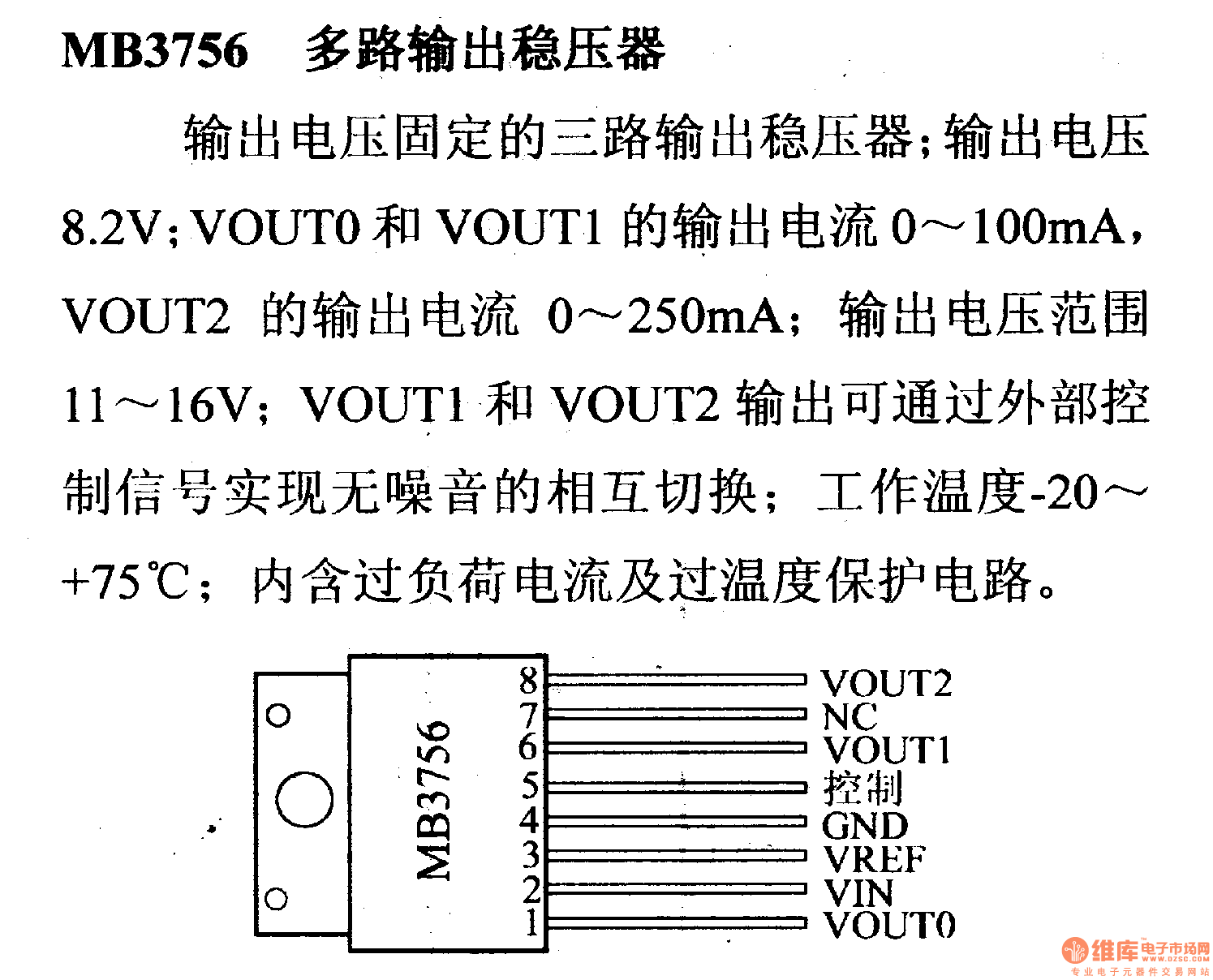

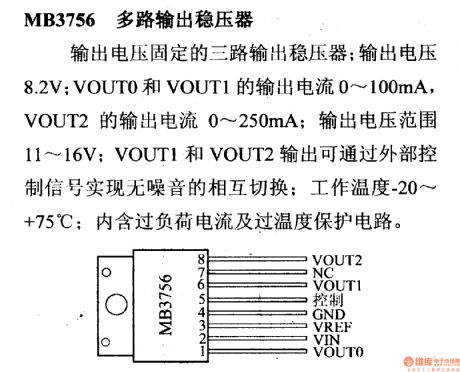

MB3756 multiple output regulator, main features and pin of DC-DC circuit and power supply monitor

Published:2011/6/30 20:05:00 Author:Lucas | Keyword: multiple output , regulator, main features , pin, DC-DC , power supply monitor | From:SeekIC

Three ways of output regulator with fixed output voltage; output voltage is 8.2V; VOUTO and VOUT1 output current is 0 ~ 100mA, VOUT2 output current is 0 ~ 250mA; output voltage range is 11 ~ 16V; VOUT1 and VOUT2 output can achieve noise-free switching by external control signal; Operating Temperature is -20 ~ +75 ℃; it includes overload current and over temperature protection circuit.
