Any input voltage converting into 4 ~ 20mA V/ I converter circuit diagram

Published:2011/8/16 21:39:00 Author:Rebekka | Keyword: V/ I converter circuit , 4 ~ 20mA | From:SeekIC

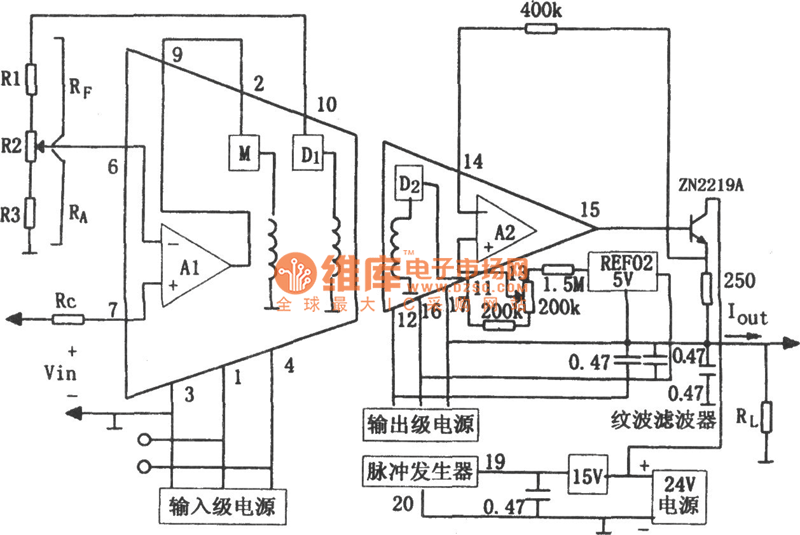

Any input voltage converting into 4 ~ 20mA V I converter circuit composed of isolated amplifier 3656 is shown as above.3656 amplifier is an isolated amplifier whichuses a hybrid integrated circuit for signal amplifier and isolation of power supply. It has a strong processing ability of analog signal because it uses an advanced modulation techniques and small hybrid transformer. The outstanding advantages of 3656 are: High adaptability and excellent performance. The ground terminals of input circuit, output circuit and power circuit are independentto each other. And they are not connected with each other to achieve the three-port isolation.
