Composed of MC44603P three outputs power supply circuit diagram

Published:2011/4/1 3:30:00 Author:Rebekka | Keyword: three outputs power supply | From:SeekIC

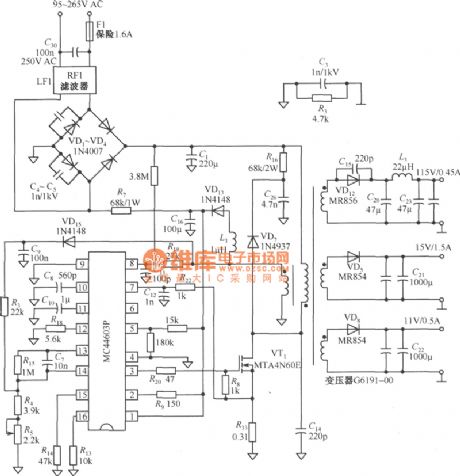

Composed of MC44603P three outputs power supply circuit diagram is shown as below.
