TL594 switching regulator, main features and pin of DC-DC circuit and power supply monitor

Published:2011/7/11 5:53:00 Author:Lucas | Keyword: switching regulator, main features , pin , DC-DC circuit , power supply monitor | From:SeekIC

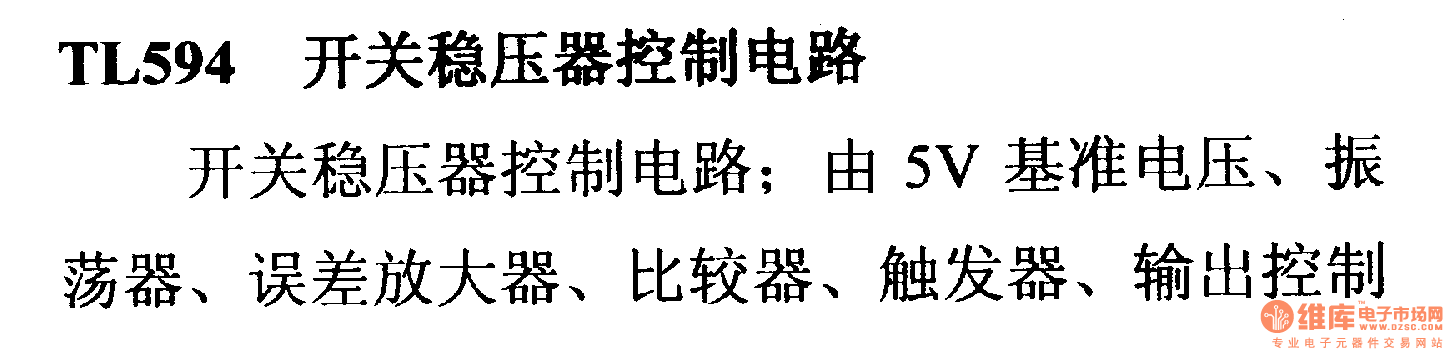

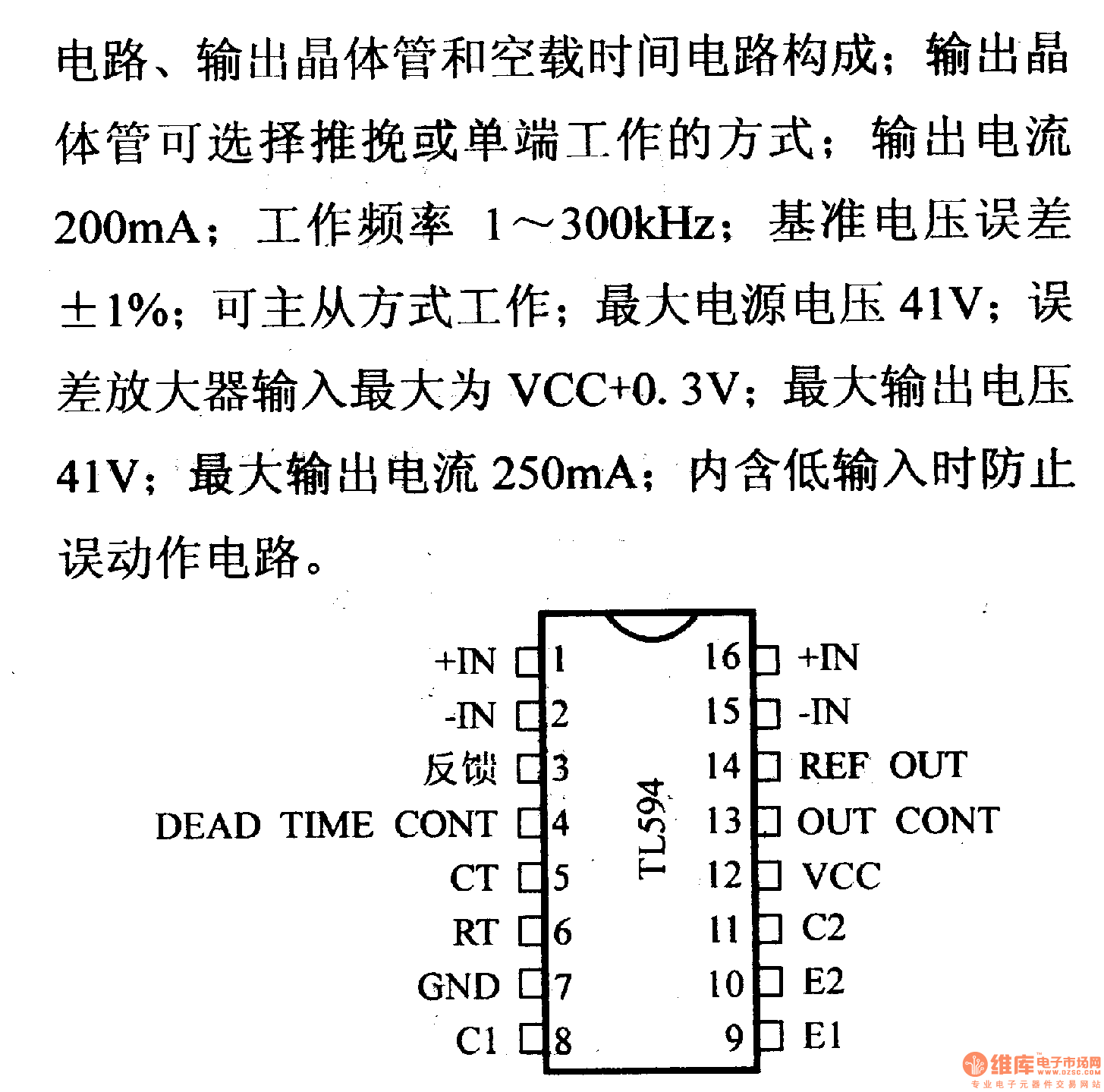

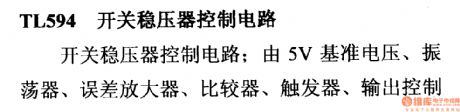

It is composed of the 5V reference voltage, oscillator, error amplifier, comparator, flip-flop, output control circuit, output transistor and load time circuit; output transistor can select single-end or push-pull working way; output current is 200mA; frequency is 1 ~ 300KHz; reference voltage is ± 1%; be the main way to work from; maximum supply voltage of 41V; error amplifier input can be up to VCC +0.3 V; the maximum output voltage is 41V; maximum output current is 250mA.
