Text-display logic pen (CD4011) circuit diagram composed of gate circuit

Published:2012/8/30 1:56:00 Author:Ecco | Keyword: Text-display , logic pen, gate | From:SeekIC

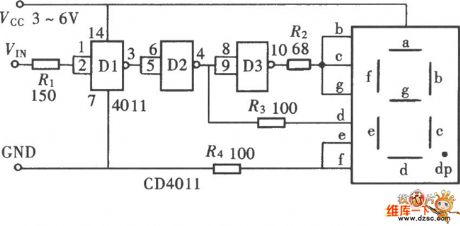

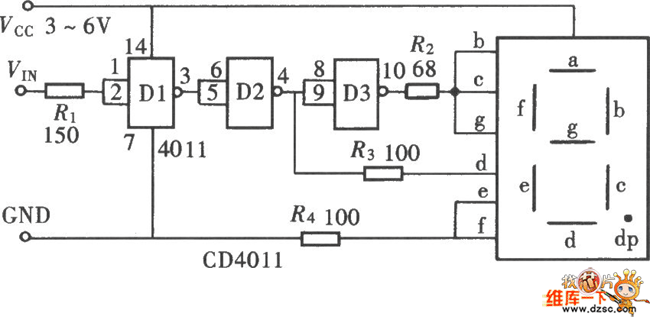

Text-display logic pen with gate circuit can take many forms, and it can be composed of inverters, also can be composed of NAND gate or NOR gate. As shown in the figure, the logic pen consists of NAND gate CD4011 and common anode digital tube.
