The pulse and pulse train generator circuit composed of CD4093

Published:2011/8/7 4:21:00 Author:nelly | Keyword: pulse, pulse train, generator | From:SeekIC

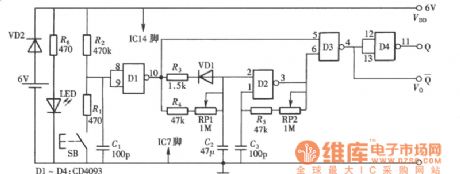

The pulse and pulse train generator is mainly composed of a four - two input Schmitt trigger CD4093 and a button switch. When the button is pressed, the circuit will output a single pulse. When the button is pressed for a period of time, the circuit will output the pulse train. The composition of the circuit is as shown in the picture. This circuit is composed of the button switch, input control circuit, pulse oscillator and pulse output circuit.
