Simple Infra-Red Transmitter/reciever Shematics

Published:2012/9/13 3:53:00 Author:Ecco | Keyword: Simple , Infra-Red Transmitter, reciever | From:SeekIC

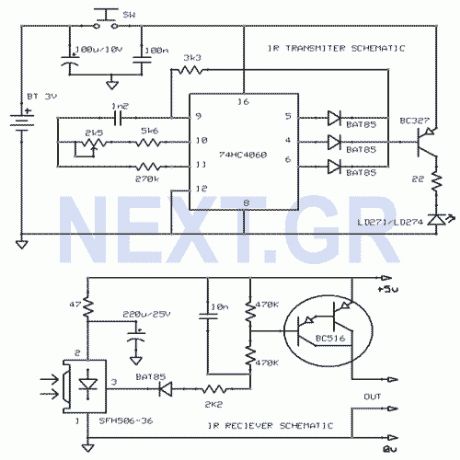

This 1 channel infrared transmitter/receiver remote control is the cheapest and simplest you can find. The transmitter transmits a sequence of pulses on 36 KHz frequency carrier. The diodes are Schottky type because of their low voltage drop (only 0.2V). The ripple counter 74HC4060 contains an oscillator which controls the frequency carrier to be 36KHz. Source: NEXT.GR
