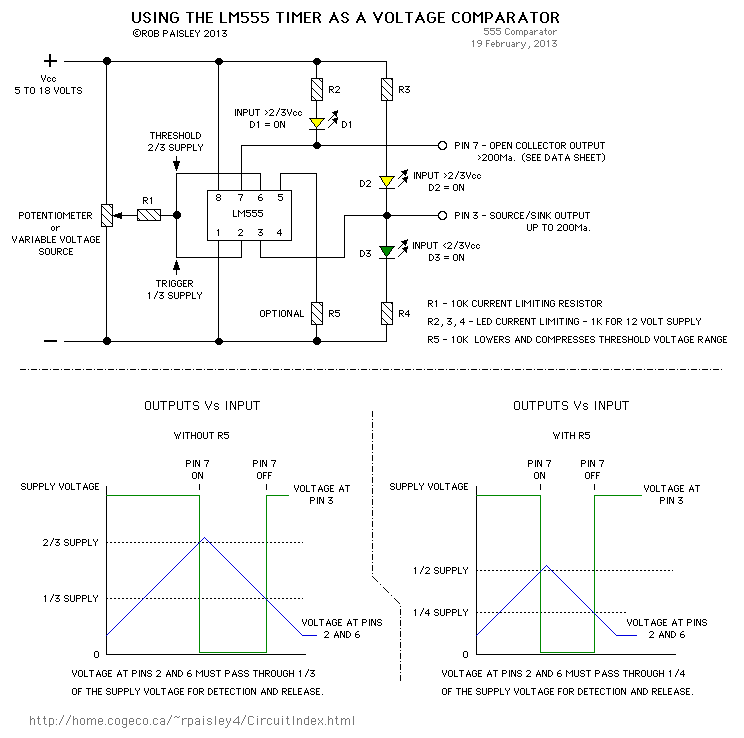

LM555 Voltage Comparator / Schmitt Trigger

Published:2013/5/16 2:10:00 Author:muriel | Keyword: LM555 Voltage Comparator / Schmitt Trigger | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Control_Circuit/LM555_Voltage_Comparator___Schmitt_Trigger.html

Print this Page | Comments | Reading(3)
