Bi-directional thyristor dimmer circuit

Published:2011/3/25 1:15:00 Author:Jessie | Keyword: Bi-directional thyristor, dimmer | From:SeekIC

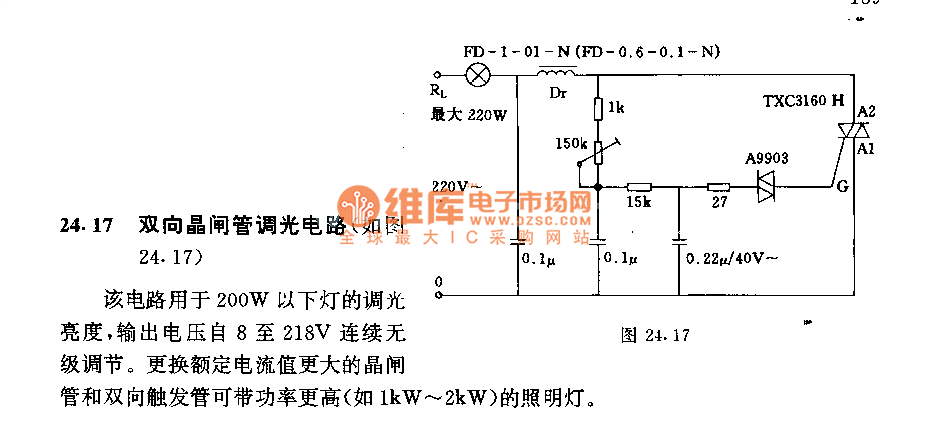

This circuit is used to adjust the brightness of the lamp below 200W, output voltage continuous stepless adjustment from 8 to 218 V. Replace thegreater rated current thyristor and bi-trigger tube can used in the higher power lamp.
