Family karaoke lighting control circuit composed of 5GM168

Published:2011/3/23 23:24:00 Author:may | Keyword: 5GM168 | From:SeekIC

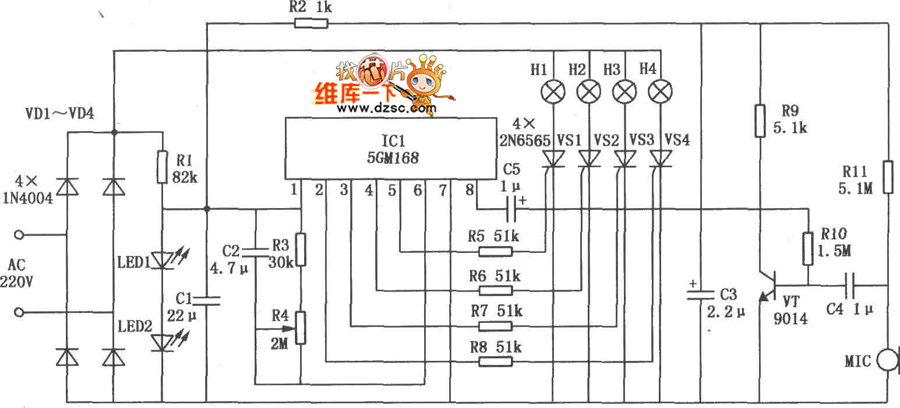

The design method of family karaoke lighting control is varied, here introduced control circuit is a application circuit with four load light ouput, jump circulate, speed controlable. Light jump speed change along with microphone received voice signal strong or weak, voice signal more strong, light jump faster, or speed is slow. Family karaoke lighting control circuit is shown in the diagram. This circuit mainly consists of power supply circuit, control circuit and audio-frequency amplifier.
